Gutter Roll Forming Machine Manufacturer in China
A Gutter Roll Forming Machine is a specialized production machine designed to continuously form metal coils into rain gutters and roof drainage channels with consistent dimensions, smooth surfaces, and accurate profiles. It is widely used in residential, commercial, industrial, and agricultural roofing systems where reliable rainwater drainage is required.Our Rain Gutter Roll Forming Machine uses a continuous roll forming process to transform galvanized steel, pre-painted steel, aluminum, stainless steel, or other suitable metal coils into finished gutter profiles. Compared with traditional manual forming methods, the machine provides higher production efficiency, better dimensional consistency, lower labor costs, and less material waste.As an experienced Gutter Roll Forming Machine Manufacturer, we can customize the machine according to the customer's required gutter profile, material, thickness, width, production speed, and automation level.Whether you need a standard rain gutter production machine or a completely customized gutter manufacturing line, we can provide a suitable solution for your production requirements.
Gutter Roll Forming Machine Advantages
Gutter Roll Forming Machine Working Process
Coil Loading → Uncoiling → Guiding → Roll Forming → Length Measurement → Cutting → Finished Gutter Collection
Step 1: Coil Loading
The metal coil is installed onto the uncoiler. Depending on the machine configuration, the uncoiler can be manual, hydraulic, or automatic.（We will provide a manual uncoiling machine free of charge.）For higher production requirements, a hydraulic decoiler can reduce manual handling and improve production efficiency.
Step 2: Material Feeding
The coil enters the feeding system and passes through the guiding device.The guide rollers help keep the material centered before it enters the forming section, reducing profile deviation during production.

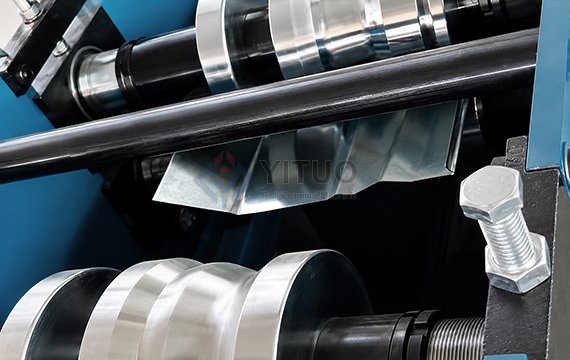

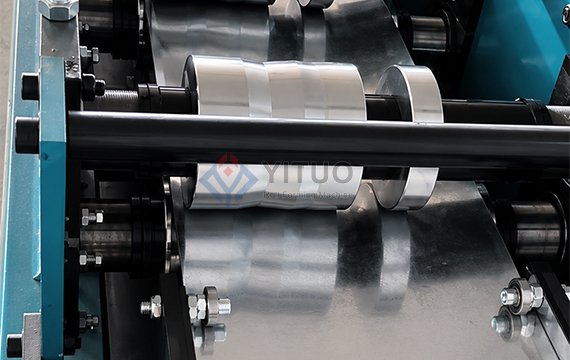

Step 3: Roll Forming
The metal strip passes through multiple roller stations.Each forming station performs a small deformation until the flat metal strip gradually becomes the required gutter profile.This gradual forming method helps reduce material deformation problems and provides a more stable finished profile.
Step 4: Length Measurement
An encoder or length measurement system can continuously monitor the production length.When the preset length is reached, the control system sends a signal to the cutting system.
Step 5: Automatic Cutting
The cutting device cuts the formed gutter according to the preset length.Depending on customer requirements, the cutting system can be designed for different production methods and profile requirements.
Step 6: Finished Product Collection
After cutting, the finished gutter is discharged from the machine and collected manually or by an optional automatic receiving system.For high-volume production, an automatic stacking or collection system can be integrated into the production line.
Gutter Roll Forming Machine Technical Parameters
Item | Typical Specification |
Machine Type | Gutter Roll Forming Machine |
Suitable Material | Galvanized Steel / PPGI / Aluminum / Stainless Steel |
Material Thickness | 0.3-0.6mm/Customized according to profile |
Coil Width | Customized according to gutter profile |
Forming Stations | Customized |
Forming Speed | 12-16m/min/Customized according to machine design |
Cutting Method | Hydraulic Cutting |
Control System | PLC |
Operation | Automatic |
Drive System | Gearbox / Chain / Customized |
Voltage | 380V/Customized according to customer’s country |
Finished Product | Metal Rain Gutter |
Note: The above specifications are for reference only. The final machine configuration should be confirmed according to the customer's material, gutter profile, thickness, coil width, production speed, and required automation level.

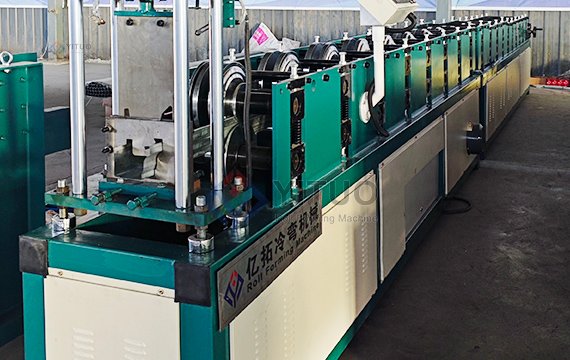

Why Choose Our Gutter Roll Forming Machine?
For gutter manufacturers, production efficiency and product consistency are two of the most important factors. A properly designed Metal Gutter Roll Forming Machine can significantly improve production efficiency while maintaining stable forming quality.
1. Continuous Automatic Production
The gutter roll forming machine uses a continuous forming process. After the metal coil enters the production line, the machine gradually forms the material through multiple forming stations.This allows operators to produce long lengths of gutters continuously without repeated manual forming operations.

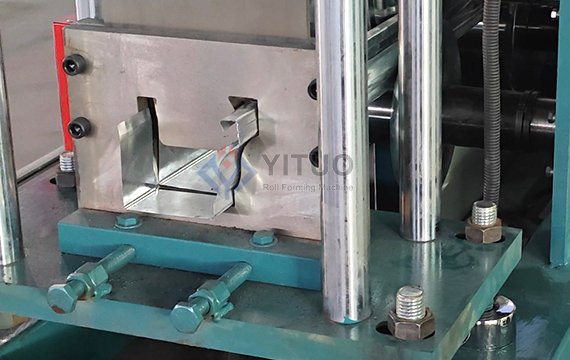

2. Consistent Gutter Dimensions
The forming rollers are precisely designed according to the required gutter profile. During production, the material passes through several forming stations and gradually reaches the final shape.This helps maintain consistent:,Gutter width,Gutter depth,Edge dimensions,Profile shape,Overall straightness.Consistent dimensions are particularly important when gutters need to be connected with accessories, corners, brackets, and downspouts during installation.
3. Reduced Material Waste
Traditional cutting and forming methods can result in unnecessary material waste, especially when the production process involves repeated manual operations.The continuous roll forming process allows the material to be used more efficiently. Combined with accurate length measurement and automatic cutting, the machine can help reduce production waste and lower the customer's overall material cost.
4. Easy Length Adjustment
The control system can be programmed according to the required gutter length.The actual production length can be customized according to the customer's requirements and the capabilities of the machine configuration.
5. Suitable for Different Metal Materials
Depending on the machine design, the gutter roll forming machine can process different types of metal coils, including:Galvanized steel,Pre-painted steel,Galvalume steel,Aluminum,Stainless steel.Material thickness and width should be confirmed before machine design so that the rollers, transmission system, motor, and cutting system can be properly configured.

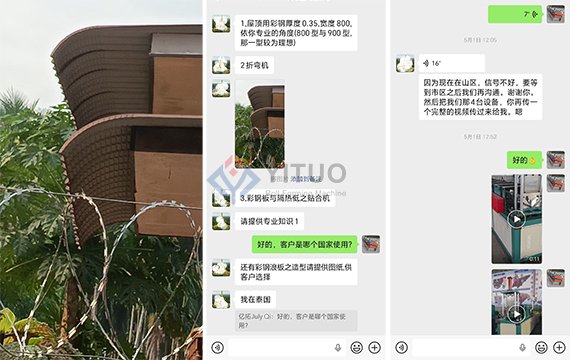

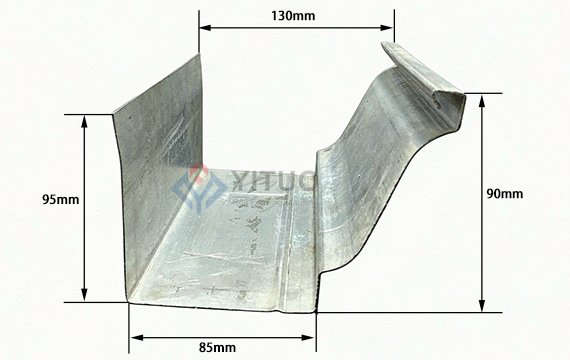

Thailand Gutter Roll Forming Machine Project Case
With the continuous growth of the construction industry in Thailand, the demand for high-quality metal roofing systems and rainwater drainage solutions has been increasing rapidly. Many roofing material manufacturers are looking for efficient production equipment to manufacture metal gutters with stable quality, accurate dimensions, and high production efficiency.In 2025, a roofing products manufacturer from Thailand contacted us to find a complete solution for expanding their metal gutter production capacity. After technical discussions and reviewing their product requirements, we designed and supplied a complete Gutter Roll Forming Production Line including the gutter roll forming machine and several supporting machines.The customer was not only looking for a single machine but a complete production solution that could help them improve production efficiency, reduce labor costs, and provide more competitive roofing drainage products in the local market.
Because the customer also needed to purchase other machines, we provided a complete solution. In addition to the drainage ditch production line, we also provided: a trapezoidal plate forming production line, a corrugated plate forming production line, and a bending machine. After the machines arrived in Thailand, we provided installation guidance and operation training to ensure that the customer's operators could quickly master the operation of the machines.
If you also need a similar solution,Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.

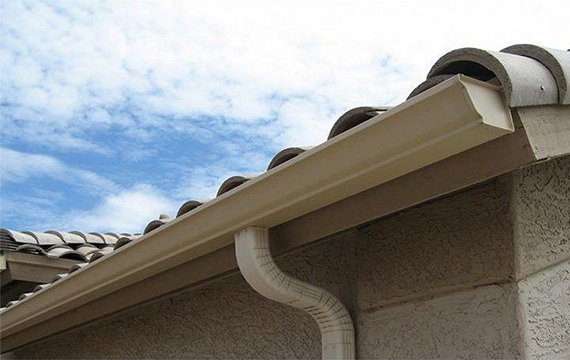

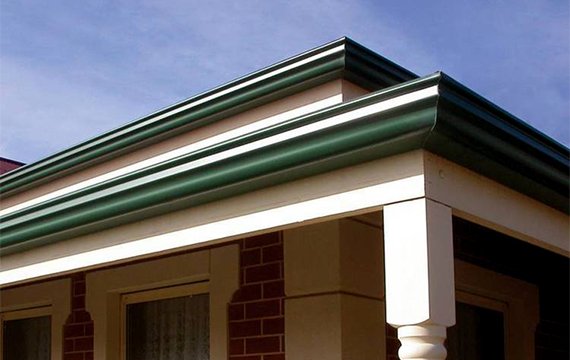

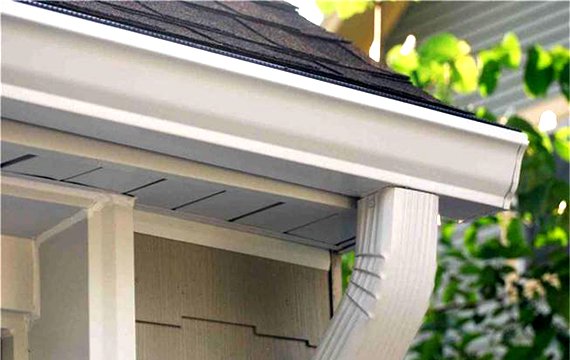

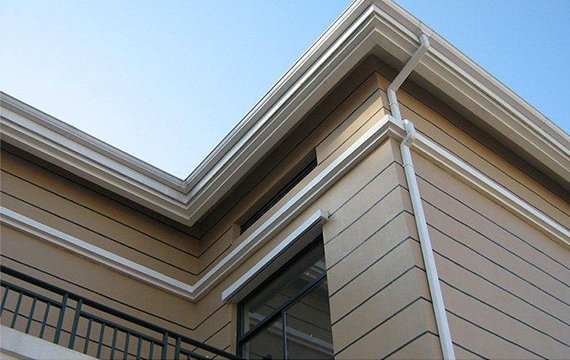

Customize NowApplication Scenarios

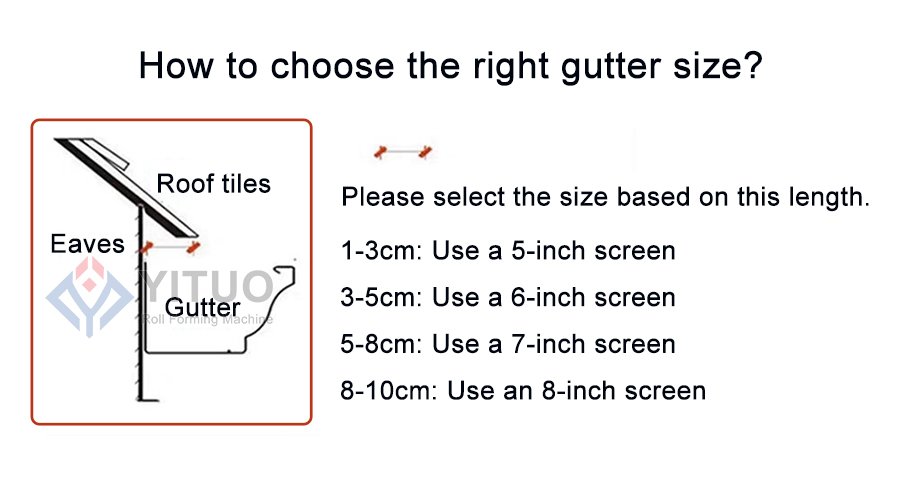

How to Choose the Right Gutter Roll Forming Machine?

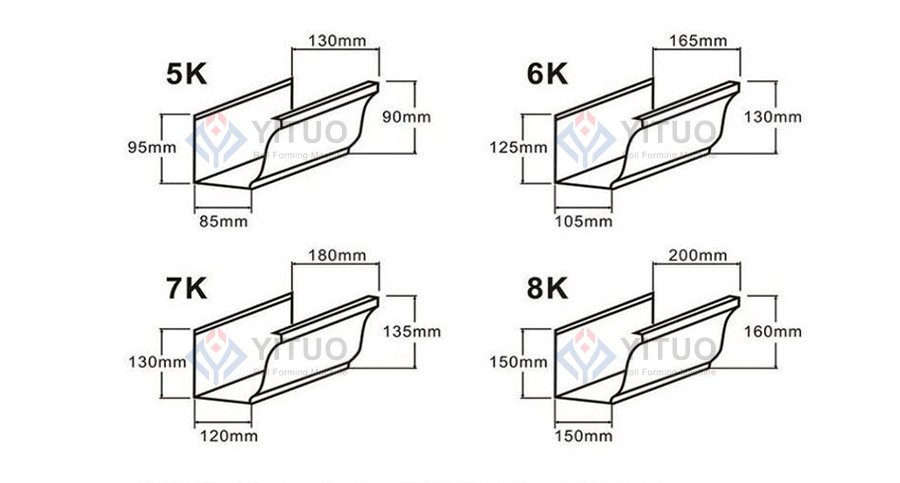

1. What Is Your Gutter Profile?
Different profiles require different roller designs. Providing a profile drawing is the best way to obtain an accurate machine quotation.
2. What Material Will You Use?
The machine can be designed for different metal materials, but the material type and mechanical properties should be confirmed before manufacturing.
3. What Material Thickness Do You Need?
The required thickness directly affects the forming roller design, machine structure, motor power, and transmission system.
4. What Production Capacity Do You Need?
If your factory needs to produce thousands of meters of gutters per day, the machine configuration should be designed around the required production capacity.
5. What Voltage Is Available in Your Factory?
Different countries use different electrical standards. We can configure the electrical system according to the customer's local power supply requirements.
Why Work With Us?
●As a professional Gutter Roll Forming Machine Manufacturer in China, we focus on providing customized roll forming solutions rather than simply supplying standard machines.

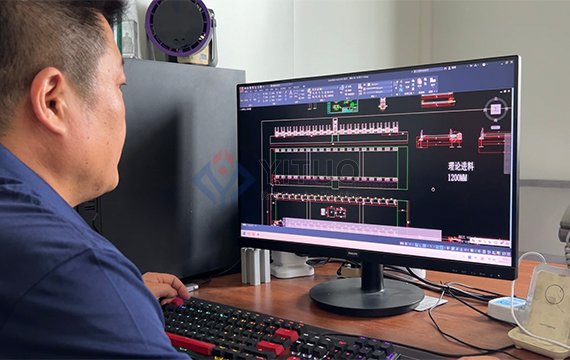

●From initial profile analysis to machine design, manufacturing, testing, shipment, installation, and after-sales support, our team can provide technical assistance throughout the project.
●Before shipment, the machine can be tested using the customer's material or equivalent material to verify the forming performance and finished product dimensions.
We can also provide:
●Machine layout drawings
●Electrical diagrams
●Operation manuals
●Installation guidance
●PLC operation instructions
●Spare parts
●Online technical support
●Customized machine design
