Glazed Tile Roll Forming Machine---One Stop Solution
The most distinctive feature of the Glazed Tile Roll Forming Machine is its robustness and durability, coupled with its virtually maintenance-free operation. This is because the resulting tiles are built to withstand a wide range of climatic conditions, and they can be specially treated to prevent the growth of mold and moss. Consequently, your roof will retain its aesthetic appeal for decades to come, requiring no subsequent maintenance. Metal roofing is lighter than concrete or clay tiles, more durable than asphalt shingles, and easier to handle than long-span corrugated sheets. It stands as the most reliable and cost-effective roofing system available on the market, offering a diverse array of designs and styles to choose from. Modern metal roofing can now convincingly mimic the appearance of other materials—such as wood shakes, asphalt shingles, and slate tiles—though, admittedly, a minor drawback is that they may lack the distinct textural depth and aesthetic nuance inherent in genuine wood or stone tiles.
The Glazed Tile Roll Forming Machine is equipped with advanced components—including a hydraulic cutting system, a programmable control system, an automatic uncoiler, and an automatic stacker—to ensure stable machine performance while significantly reducing manual labor and production time. As such, these machines are indispensable for manufacturers seeking to meet the growing market demand for reliable and aesthetically pleasing roofing materials. Yituo boasts a professional design team ready to provide you with complete Glazed Tile Roll Forming Machine production lines and comprehensive, one-stop solutions. Our Glazed Tile Roll Forming Machines have been successfully exported to numerous countries—including Saudi Arabia, the United States, Kazakhstan, and Nigeria—consistently receiving highly positive feedback from our clients.
Machine Single-Take Video
Glazed Tile Roll Forming Machine Features
Glazed Tile Roll Forming Machine Working Process
Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.The feed width is adjustable and features a manual cutting blade.
GCr15 Roller
GCr15 possesses exceptional wear resistance and compressive strength; upon quenching,, enabling it to maintain its roller profile without wear and preserve precise tile geometry over extended periods.
Hydraulic Molding
A dual-guide-post hydraulic press performs downward pressing to form the product, resulting in an appearance resembling traditional glazed tiles.
Cr12MoV Shear Blade
After undergoing quenching and low-temperature tempering, Cr12MoV shear blades achieve a hardness of HRC 58–62. The cutting edges are sharp and wear-resistant, highly resistant to compressive forces without easily collapsing, and produce clean, flat cuts.
Glazed Tile Roll Forming Machine Key Attributes
Material | Type | GI, PPGI |
Thickness(mm) | 0.4-0.6 | |
Yield Strength(Mpa) | 230-350 | |
Working Speed(m/min) | 2-3m/min or 4-6m/min | |
Step Distance | Adjustable according to request (>=250mm) | |
Roller Station | Depends | |
Roller Material | GCr15 | |
Roller Driven Type | Chain transmission/Gearbox | |
Shaft Material | 45# steel with heat treatment | |
Shaft Diameter | Ø75 mm | |
Control System | PLC+Touch screen and button | |
Main Machine Power(KW) | 5.5 | |
Hydraulic station Power(KW) | 5.5 | |
Machine Weight(Kg) | 7000 | |
Machine size(m) | 9.5×1.8×1.9 Depend on final design | |
Glazed Tile Roll Forming Machine Advantage
●The machine integrates feeding, roll forming, hydraulic pressing, cutting, and automatic output in one production line, greatly improving manufacturing efficiency.
● The hydraulic pressing system creates clear and uniform tile steps, giving the finished panels the traditional appearance of ceramic roof tiles while maintaining the durability of steel.
● Equipped with a user-friendly PLC control system and touch screen, operators can easily set production parameters and monitor machine performance.
● The machine frame is manufactured from high-strength steel and processed by precision welding to ensure long-term stability and reliability.
● We can design and manufacture different glazed tile profiles according to customer drawings, market requirements, and local building standards.
If you require other profiles...
We can combine glazed roof tiles with other profiles into a single machine, enabling both profiles to be produced on the same machine.
For example:
● Trapezoidal sheets
● Corrugated panels
● Great Wall panels
The machine configuration would be: glazed tiles on the upper deck and other profiles on the lower deck. The advantage of this approach is that it saves floor space in your workshop. Of course, if your production volume is very high, we would still recommend operating two separate machines, as this will increase output and allow both machines to run simultaneously.
Why Choose Our Machines?
●Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
●We offer flexible OEM/ODM customization services to meet your diverse requirements.
●Our machines have been exported to over 100 countries and regions worldwide.
●Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
How do we ensure the quality of our machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.
Saudi Arabia Glazed Tile Roll Forming Machine Project Case

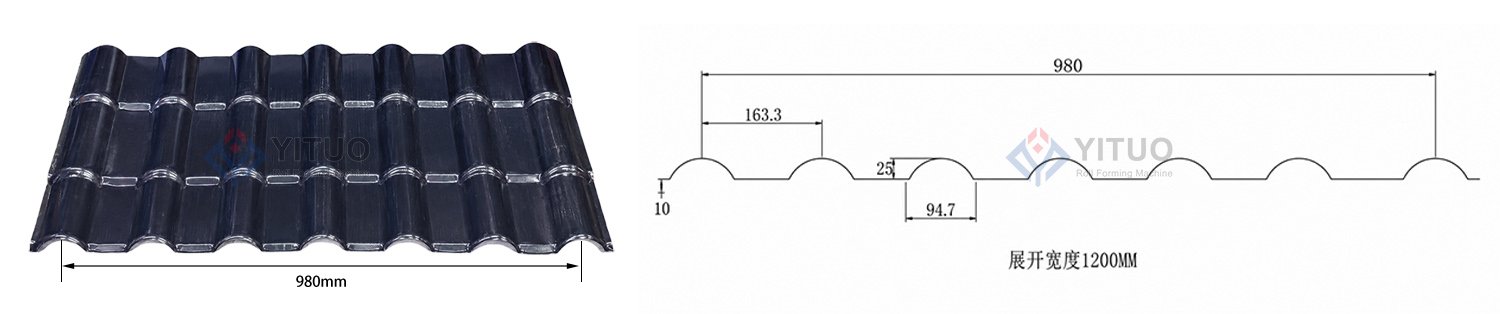

Project Type: Production of architectural roofing materialsPanel Specifications: Width 980mm, Effective Width (after forming) 980mm, Coil Width (unfolded) 1200mm, Profile Height 10mm, Pitch 163.3mm, Wave Height 25mmHigh-end residential and commercial projects in Saudi Arabia demand strict standards for roofing materials, placing particular emphasis on weather resistance, aesthetics, and production efficiency. The client sought equipment capable of mass-producing high-quality glazed-style roofing tiles that combine visual appeal with durability. The glazed tile forming machine we supplied offers the following features:
● High-Precision Forming: The dimensions and curvature of each tile are strictly controlled, ensuring a flat, aesthetically pleasing roof installation.
● High-Efficiency Production: With a forming width of 980mm and an input coil width of 1200mm, the machine produces a large volume of tiles per hour, meeting the demands of bulk orders.
● Exceptional Durability: The machine utilizes GCr15 rollers and Cr12MoV shear blades; these high-hardness materials ensure stable, long-term operation and reduced maintenance costs.
Since adopting this glazed tile forming machine, the client has significantly increased annual output, effectively meeting high-end market demand. The product's appearance and quality have improved markedly, resulting in a visually impressive and elegant roof finish. Additionally, the machine has lowered labor and production costs while boosting overall manufacturing efficiency.
If you also need a similar solution,Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.
Talk To EngineerMetal Glazed Tile Applications
Why Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
