Truck Side Panel Forming Machine — Chinese Manufacturer
As a professional Chinese manufacturer, we specialize in designing and producing high-quality Truck Side Panel Forming Machines for cargo truck bodies, trailers, and commercial vehicle manufacturing. Our forming machines are developed to produce strong and accurate truck side panels through advanced hydraulic forming technology and customized forming dies.The machine is suitable for processing galvanized steel, steel sheets, and other metal materials to create corrugated truck body side panels with excellent strength, durability, and surface quality. With stable performance, precise forming results, and flexible customization options, our Truck Side Panel Forming Machine helps customers improve production efficiency and meet different truck body panel requirements.With years of experience in metal forming equipment manufacturing, we provide complete solutions including machine design, mold customization, installation support, and after-sales service for global customers.
Machine Operation Video
Truck Side Panel Forming Machine Advantages

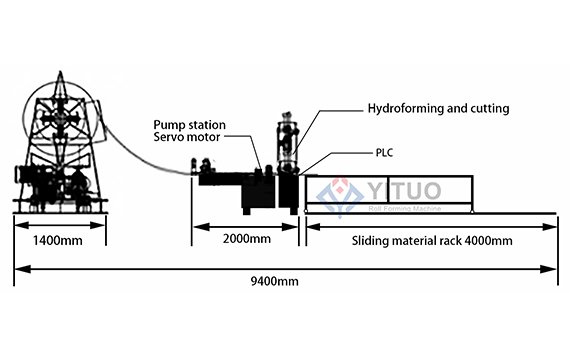

Truck Side Panel Forming Machine Working Process
Hydraulic Decoiler
The decoiler automatically expands the mandrel through a hydraulic cylinder, ensuring the steel coil remains firmly positioned throughout the production process.An automatic uncoiler is provided free of charge by default; if you require a hydraulic electric uncoiler, we will confirm the price with you.

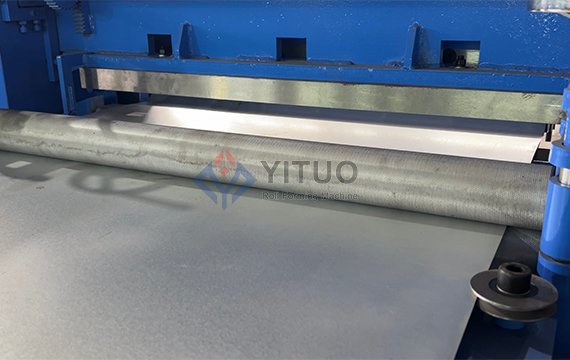

Feeding & Guiding System
The feeding system ensures that the steel strip enters the roll forming section accurately without deviation.Adjustable side guiding rollers allow operators to align different coil widths quickly, ensuring every roofing sheet is formed with excellent dimensional accuracy.
Automatic stamping
It automatically performs punching at fixed intervals, with servo-driven feeding ensuring dimensional precision. Additionally, the punching dies are interchangeable to meet the diverse needs of different customers.
Hydraulic cutting of Cr12MoV tool steel
The Cr12MoV tool steel cutting blade is designed to match the roof panel profile, ensuring a clean, smooth cut without deforming the finished panel. The hydraulic cutting process is synchronized with the machine's operation via a PLC system, guaranteeing precise cutting lengths with minimal margin of error.
Truck Side Panel Forming Machine Detail

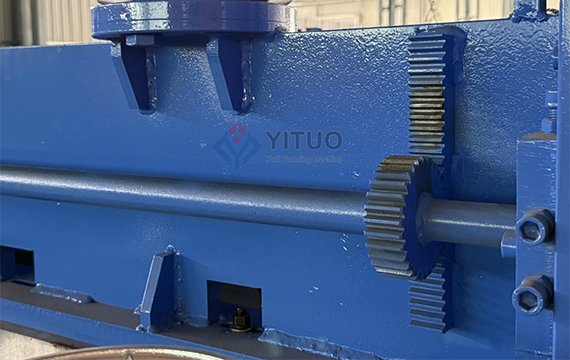

Balance Bars
Ensures the hydraulic system remains stable and does not shift.

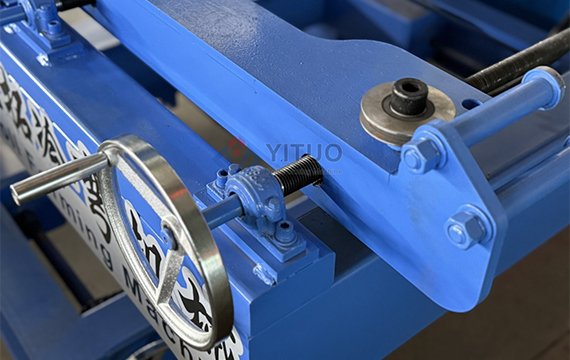

Adjustable Feeding Width
Width adjustment via hand crank for easy operation.

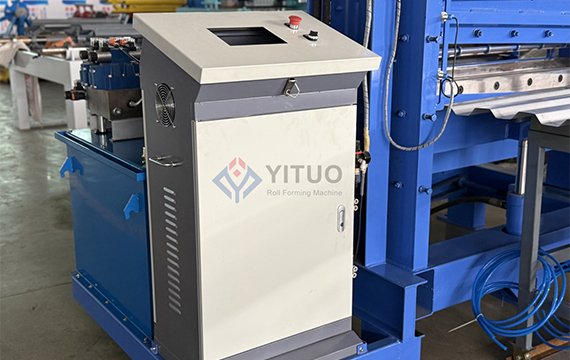

PLC
Supports multiple languages

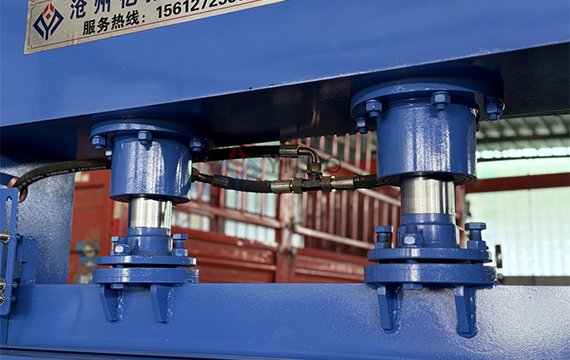

Dual Guide Pillars
Sufficient driving force for support

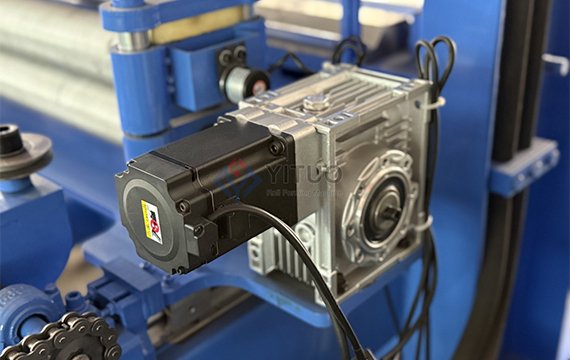

Feeding Device
Servo motor ensures precise feeding dimensions.

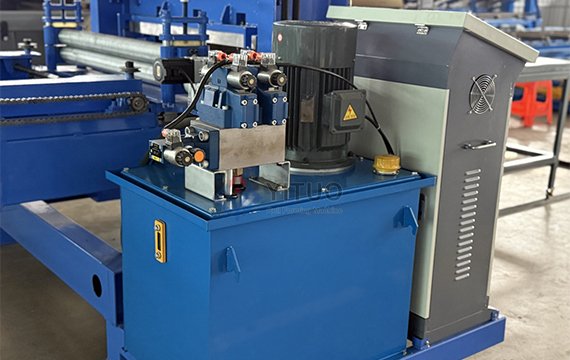

15KW Pumping station
Ensure sufficient punching force.
Truck Side Panel Forming Machine Technical Parameters
Item | Technical Parameter |
Machine Name | Horizontal Pressing Truck Side Panel Forming Machine |
Production Mode | Automatic Continuous Production |
Material Type | Galvanized Steel / Cold Rolled Steel |
Material Thickness | 0.8-1.5 mm (Customized) |
Material Width | 500-1100mm |
Coil Weight | 2-10 Tons (Customized) |
Forming Speed | 3-8 m/min (Adjustable) |
Drive System | Servo motor drive |
Punching System | Hydraulic Punching |
Feeding System | Servo Motor Feeding |
Control System | PLC Automatic Control |
Operation Interface | Touch Screen |
Main Motor Power | 3.8kw |
Hydraulic Station Power | 15kw |
Electrical Voltage | 380V / 50Hz / 3Phase (Customized) |
Installation Method | Floor Mounted |
Machine Direction | Customized According to Workshop Layout |
Workflow of the Truck Side Panel Forming Machine
●Synchronize the speed of the hydraulic uncoiler with that of the truck side panel forming machine.
●After feeding the material, punch it to the required length before shearing.
●The automatic receiving table adjusts its position based on the length of the formed panel.
Why Choose a Truck Side Panel Forming Machine?
●It can press cargo body panels of any length, ensuring a seamless fit during assembly.
●The equipment can produce profiles of various widths to accommodate different vehicle body designs.
●It utilizes a servo-driven feeding system and hydraulic forming technology to ensure precision and consistent panel quality.
●The formed panels offer exceptional strength and durability, meeting the demands of heavy-duty transport operations.
How do We Ensure The Quality of Our Machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.
Why Choose Our Machines?
● Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
● We offer flexible OEM/ODM customization services to meet your diverse requirements.
● Our machines have been exported to over 100 countries and regions worldwide.
● Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
Brazil Truck Side Panel Forming Machine Project Case

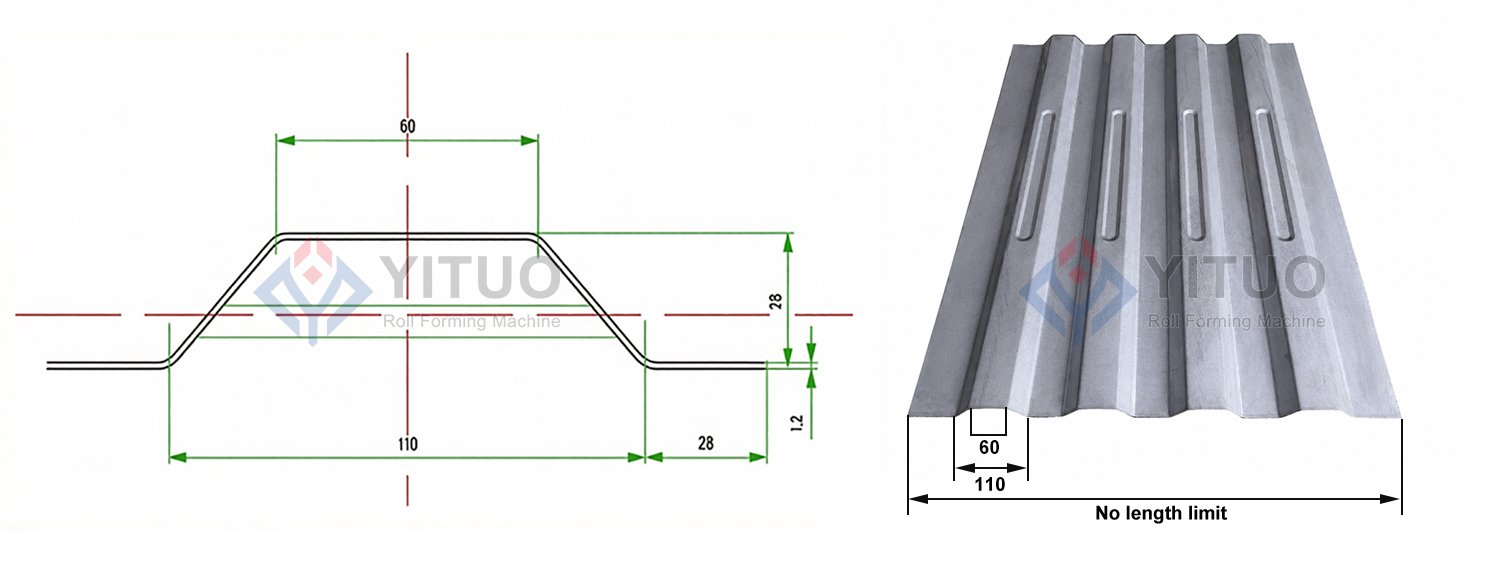

A Brazilian client specializing in truck body manufacturing was seeking a reliable solution to boost the production efficiency of truck side panels. Previously, the client relied on standard roll-forming machines, but the limited width capacity of this equipment made it difficult to meet the growing demands of the local transport market. After evaluating multiple suppliers, the client selected our truck side panel forming machine, citing its stable forming performance, customization capabilities, and professional technical support. Based on the client's drawings and production specifications, our engineering team designed a customized solution: a side-panel forming machine.
Key Features:
●Forming dies customized to the client's side panel drawings;
●Stable hydraulic system ensuring consistent forming quality;
●Heavy-duty frame design built for long-term operation;
●PLC control system for ease of operation;
●Suitable for galvanized steel and other metal materials.
For overseas clients, selecting a roll-forming equipment supplier involves considering long-term reliability alongside price. We are grateful for the client's trust; we lived up to the expectations placed in us and delivered a result that met with their satisfaction.
If you also need a similar solution,Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.
