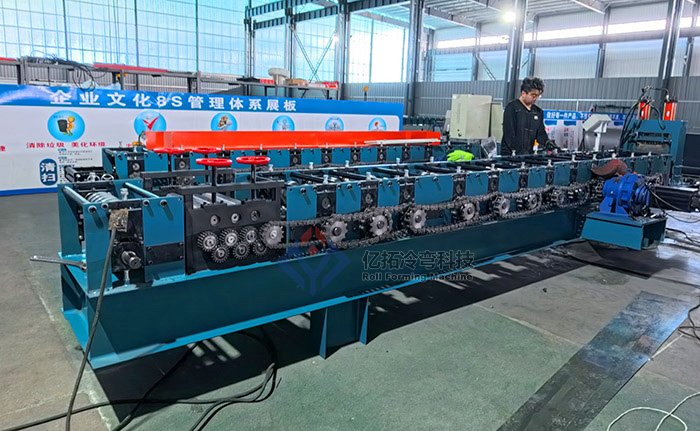

C-Purlin Roll Forming Machine Manufacturer
C-purlins serve as critical structural components in many buildings, and the C-Purlin Roll Forming Machine ensures that their manufacturing process is both rapid and precise. This not only contributes to enhancing the quality of the C-purlins but also effectively minimizes material waste. If you are seeking solutions to optimize your construction workflow, investing in a C-Purlin Roll Forming Machine would be an excellent choice. The machine operates by feeding metal sheets through a series of rollers; through the compressive and shaping action of these rollers, the metal sheets are ultimately transformed into the desired C-purlin profile.
C-Purlin Roll Forming Machines are gaining increasing popularity across a wide range of industries. Compared to traditional methods of manufacturing C-purlins, the roll forming machines offered by the YiTuo brand boast numerous advantages. Perhaps the most significant of these advantages is the exceptional speed and efficiency demonstrated during the production of C-purlins. The production speed of a C-Purlin Roll Forming Machine can reach up to 90 feet per minute—a level of efficiency that far surpasses most traditional manufacturing methods.
Machine Working Video
C-Purlin Roll Forming Machine Features

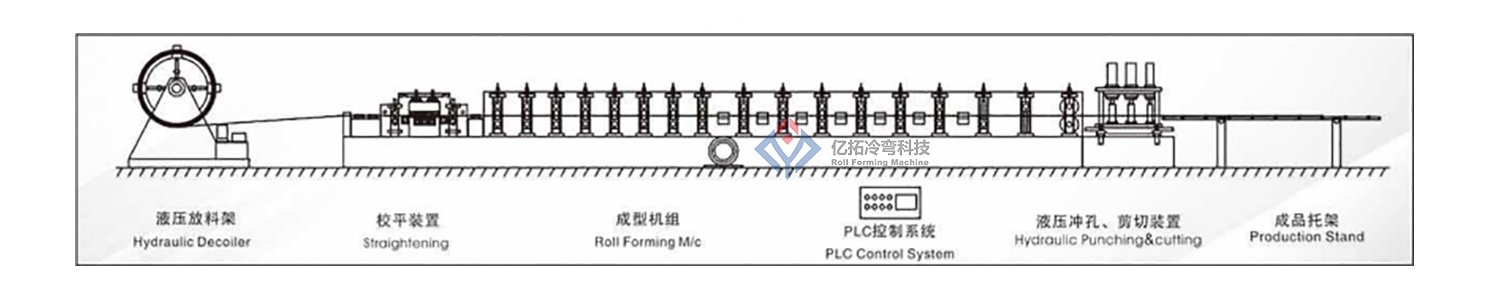

C-Purlin Roll Forming Machine Production Process

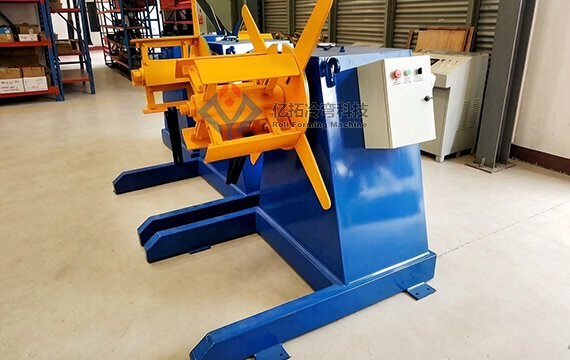

Manual Decoiler
A manual decoiler is provided as a standard accessory; if you require an electric decoiler, we will confirm the specifications and pricing with you.

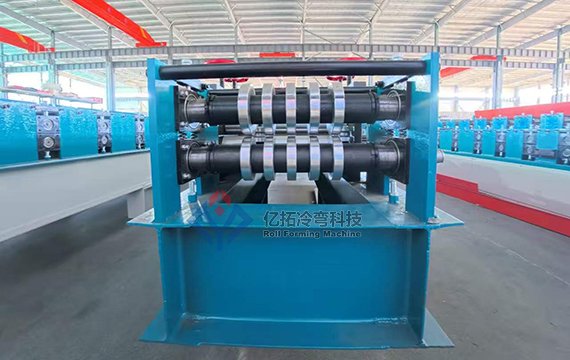

Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.

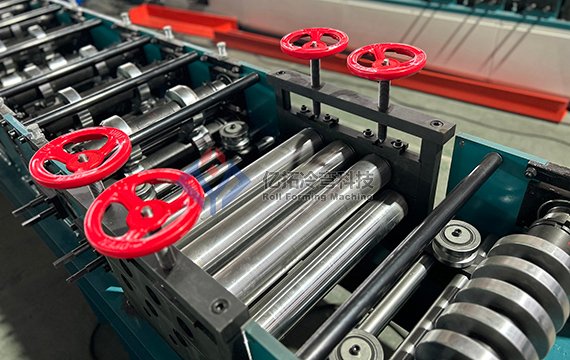

7-Roller Leveling
Straightens the coiled sheet into a flat plane, facilitating the subsequent forming process.

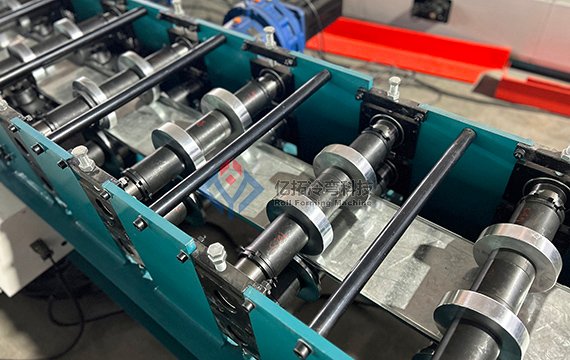

Roll Forming
The material is shaped as it passes through a series of precision-engineered rollers made from high-grade 45# steel.

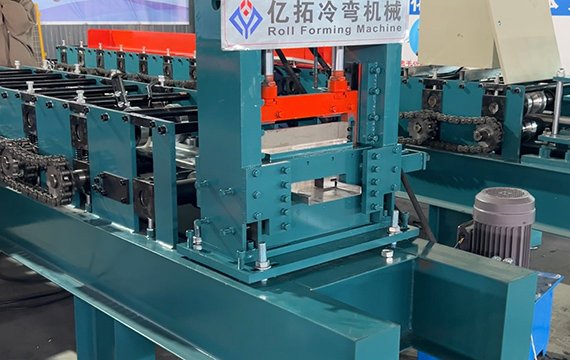

Cutting
Utilizes a thickened DC53 steel cutting blade to ensure burr-free cuts and prevent edge jamming; robust and highly durable.
Discharge
Fully automated via PLC control, ensuring precise length accuracy while preventing profile deformation or edge warping.
C-Purlin Roll Forming Machine Key Attributes
C-Purlin Roll Forming Machine | |
Brand | YiTuo |
Base material | GI. GL. PPGl. PPGL . Aluminum |
Steel thickness | 0.8mm-1.5mm(Customized) |
Effective width | 80mm-300mm |
Machine Size | 7000*1000*1200mm |
Machine Weight | 5.2tons |
Frame Material | Square Steel |
Side Panel Of Machine | 12mm |
Rollers | 18rows |
Roller material | 45# steel Cr12 Mov HRC 58-62 |
Diameter Of The Shaft | 50mm |
Drive Mode | Chain Wheel and Cycle Chain Length:1 Inch |
Productivity | 90 feet/min |
Voltage | 380V 50Hz 3phases(Can be customized according to local voltage) |
Motor power | 5.5kw17.5KW motor |
Cutting&Hydraulic | Hydraulic pump station : 4kw Regular Blade: Cr12 Mov HRC 58-62 |
Control System | PLC Electronic control cabinet |
If you also need to produce other purlins

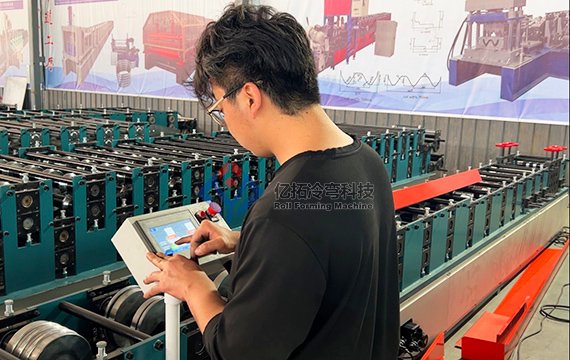

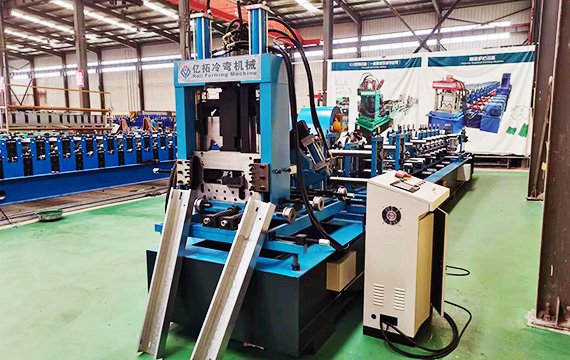

This fully automated C/Z/U-profile steel machine features rapid changeover capabilities, allowing for a complete profile switch in just one minute. Via a single-touch command on the PLC interface, the machine can instantly adjust to produce the specific profiles required by the customer; these adjustments are executed with millimeter-level precision, and the equipment maintains a high forming speed.
●A single machine is capable of simultaneously producing both C & Z purlins or C & U purlins, with the dimensions of the purlins fully controlled by the PLC system.
●Furthermore, this machine is equipped with punching capabilities, allowing for adjustable hole positioning and sizing.
●Notably, changing the purlin profile being produced does not require replacing the cutting blades.
Why Choose Our Machines?
●Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
●We offer flexible OEM/ODM customization services to meet your diverse requirements.
●Our machines have been exported to over 100 countries and regions worldwide.
●Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
C-Purlin Roll Forming Machine
Greatest Advantage
●The width of the profiles produced by this machine is infinitely adjustable, requiring no replacement of rollers or cutting blades. Saves time and labor costs, and boosts production efficiency.
●Equipped with integrated leveling and punching capabilities, the machine operates as a fully automated production line, ensuring high production efficiency and consistent product quality.
●The production speed of a C-Purlin Roll Forming Machine can reach up to 90 feet per minute—a level of efficiency that far surpasses most traditional manufacturing methods.
How do we ensure the quality of our machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.

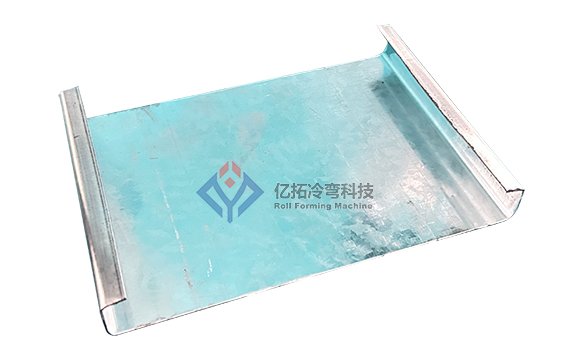

India Steel Structure Project Project Introduction
This project was completed for a steel structure construction company in India specializing in warehouse buildings and industrial factory construction.The customer required a high-efficiency C purlin production solution for manufacturing galvanized steel C purlins used in roofing and wall support systems. According to the customer’s profile drawing and production requirements, we provided a customized C Purlin Roll Forming Machine with automatic PLC control and hydraulic cutting system.The finished C purlins feature smooth surface quality, stable dimensions and high structural strength, suitable for large-scale steel structure applications. The machine operates with high forming precision and stable production performance, helping the customer improve manufacturing efficiency and reduce labor costs.
The complete production line includes:
* Hydraulic Decoiler
* Feeding & Leveling Device
* Roll Forming System
* Hydraulic Cutting System
* PLC Automatic Control Cabinet
* Output Table
After successful installation and commissioning, the customer highly recognized the machine quality, stable operation and professional after-sales support.
C-Purlin Standard Specifications
The following are common standard specifications for C-purlins. In addition to these, we can customize any specifications you require; please send us your drawings or let us know your specific needs.
Contact Engineer

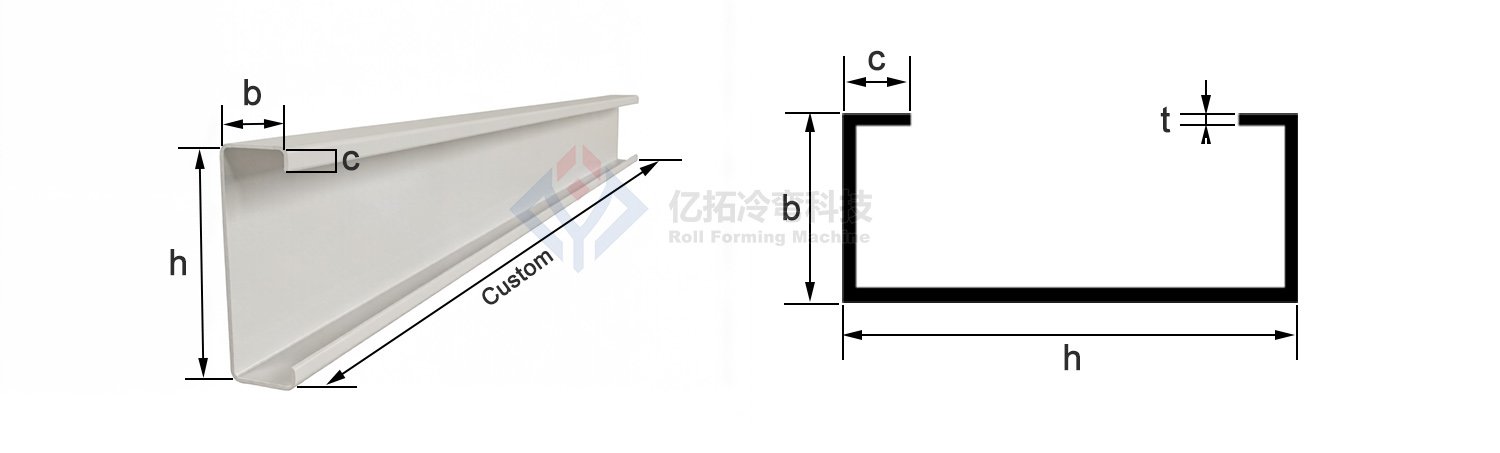

Model | Section Size (mm) | Holes Distance(mm) | |||
h | b | C | t | ||
C80 | 80 | 40 | 15 | 2.0-3.0 | —— |
C100 | 100 | 50 | 20 | 2.0-3.0 | 40 |
C120 | 120 | 50 | 20 | 2.0-3.0 | Adjustable |
C140 | 140 | 50 | 20 | 2.0-3.0 | Adjustable |
C160 | 160 | 60 | 20 | 2.0-3.0 | Adjustable |
C180 | 180 | 60 | 20 | 2.0-3.0 | Adjustable |
C200 | 200 | 60 | 20 | 2.0-3.0 | Adjustable |
C220 | 220 | 70 | 20 | 2.0-3.0 | Adjustable |
C250 | 250 | 70 | 20 | 2.0-3.0 | Adjustable |
C300 | 300 | 80 | 20 | 2.0-3.0 | Adjustable |
C-Purlin Standard Specifications

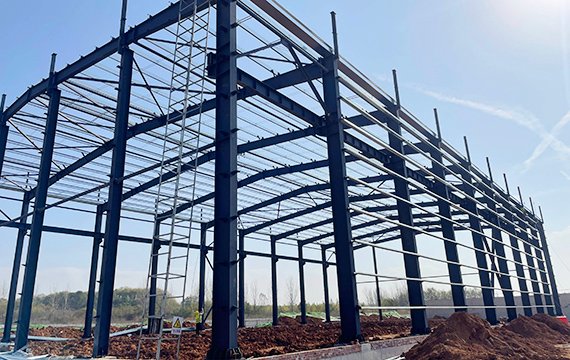

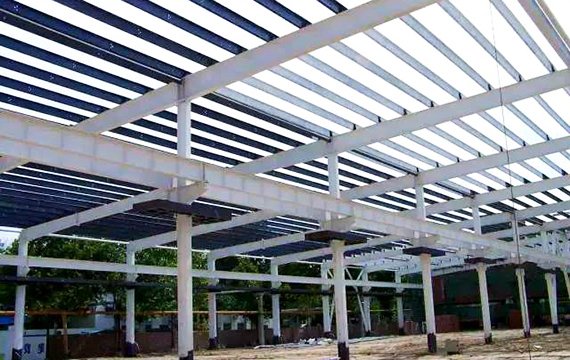

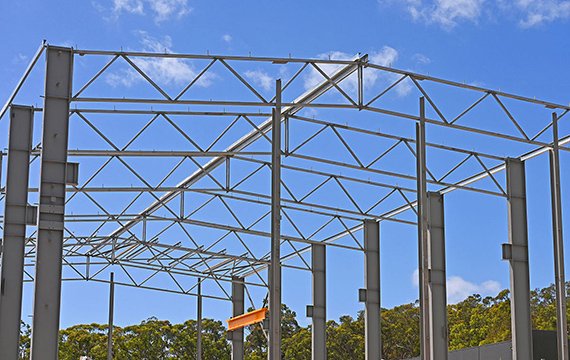

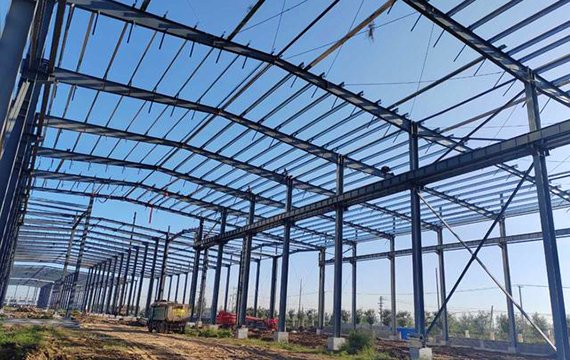

Industrial buildings Hall and warehouse construction Expansion and renovation projects Agricultural projects
Why Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
We’ve been running this machine for over 18 months now, 10 hours a day. The frame is incredibly solid, and the hydraulic system (Siemens components) hasn't given us a single issue. For the price, the build quality is unmatched. It just works.
I was worried about setting up such a complex machine overseas, but their engineer guided us via video call. The manual was clear, and within 3 days we were producing perfect panels. Great after-sales service!
The panels are perfectly straight with no twisting. The machine arrived in Kenya well-protected in the wooden case—no rust, no dents. It saved us so much labor cost on site.
