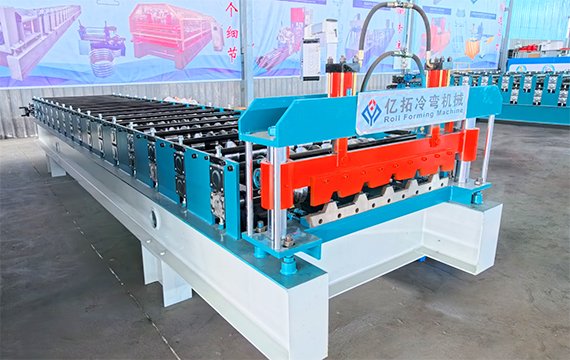

Trapezoidal Roof Sheet Machine Manufacturer
As a leading manufacturer of Trapezoidal Roof Sheet Machines, we fully understand the critical importance of precision and efficiency in the production process. Our Trapezoidal Roof Sheet Machine is meticulously engineered to deliver exceptional performance, ensuring that every roof sheet meets rigorous quality standards. Equipped with state-of-the-art technology, the machine precisely forms trapezoidal profiles, thereby providing superior structural integrity and aesthetic appeal.
A key advantage of our Trapezoidal Roof Sheet Machine lies in its versatility. It is capable of processing a wide range of materials—including galvanized steel, aluminum, and various other metal alloys—making it suitable for diverse roofing applications. The machine's robust construction and advanced features ensure long-term durability and minimal maintenance requirements, offering a cost-effective solution for roof sheet production.Our machine incorporates user-friendly controls and automation features into its design, making operation both simple and highly efficient. This not only helps reduce labor costs but also boosts production efficiency, enabling manufacturers to easily meet tight deadlines and fulfill large-scale orders.
The Trapezoidal Roof Sheet Machine is an essential piece of equipment for any roof sheet manufacturer looking to enhance their production capabilities. Its advanced technology, versatility, and high-quality output make it an invaluable asset within the roofing industry. Whether you are producing roof sheets for residential, commercial, or industrial applications, this machine delivers unparalleled efficiency and precision.
Trapezoidal Roof Sheet Machine Features

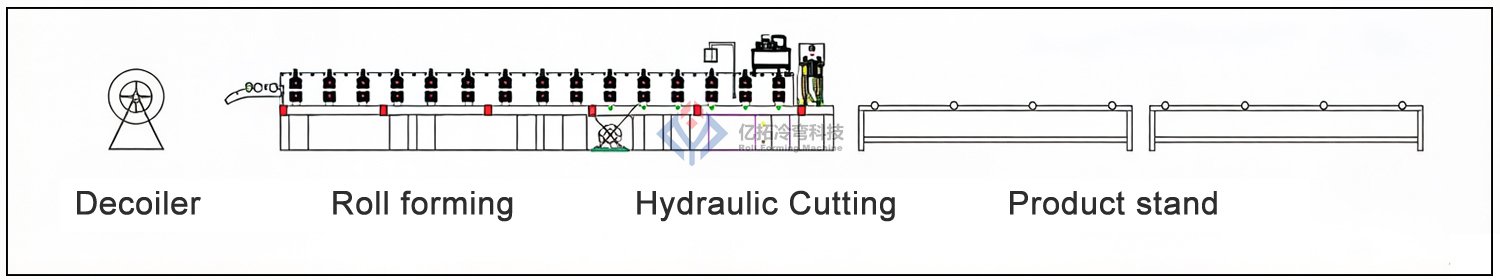

Trapezoidal Roof Sheet Machine Production Process
Decoiler
A manual decoiler is provided as a standard accessory; if you require an electric decoiler, we will confirm the specifications and pricing with you.

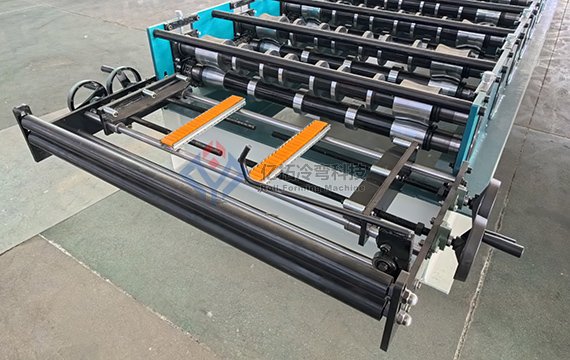

Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.The feed width is adjustable and features a manual cutting blade.

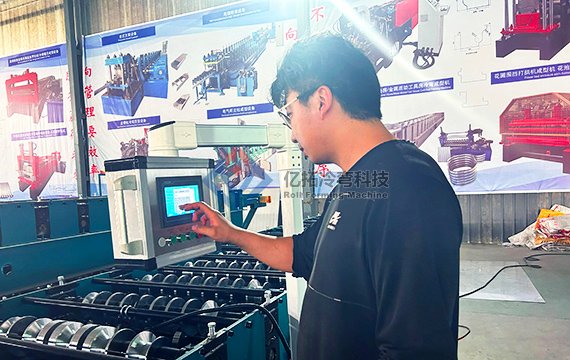

Siemens PLC
Our standard offering features the Siemens brand for PLC control systems, variable frequency drives, and low-voltage electrical components. If you require other brands, please contact us for discussion and confirmation.You can choose between a 360-degree rotating or a floor-standing PLC.

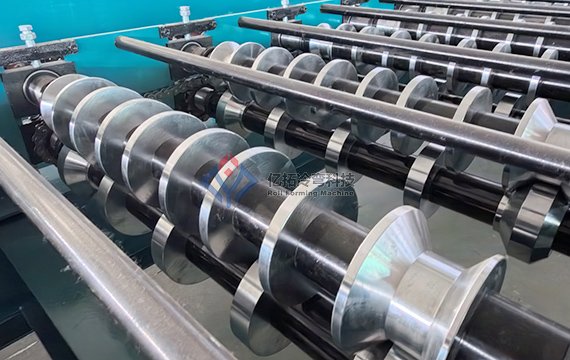

Roll Forming
The material is shaped as it passes through a series of precision-engineered rollers made from high-grade 45# steel.The heavy-duty tie rods, suspension plates, and chains ensure the machine is capable of extended, long-term operation.

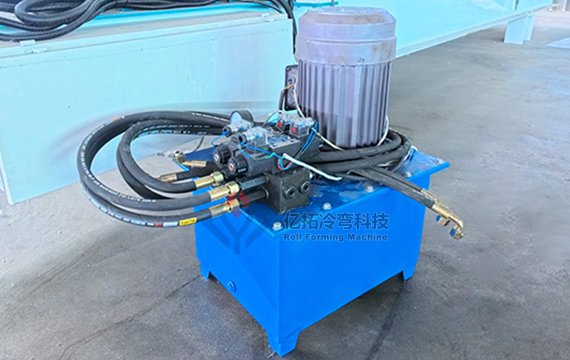

Pump Station
Siemens motors are provided by default. If you require motors or accessories from other brands, please contact us for confirmation.

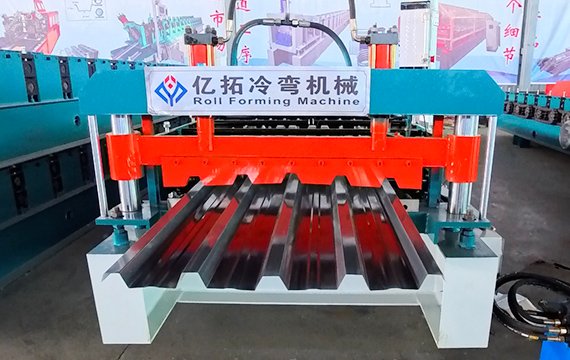

Cutting
Utilizes a thickened DC53 steel cutting blade to ensure burr-free cuts and prevent edge jamming; robust and highly durable.
Trapezoidal Roof Sheet Machine Key Attributes
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 914-1500mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 9-30 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | DC53 steel cutting blade quenched treatment 58℃-62℃ |
| Power | 5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V 50Hz 3Phase (As your requirement) |
| Forming Speed | 10-16 m/min (The speed depends on the shape of the tile and the thickness of the material.) |

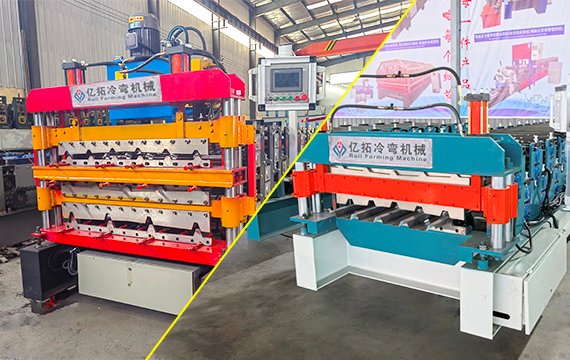

If you also need to produce other styles...
In situations where you require more than one profile:
●If you have high production volume requirements, we recommend purchasing multiple machines, as they can operate simultaneously to meet your customers' demands.
●If your production requirements are moderate, we recommend purchasing a single machine; we can design it to produce two or three different profiles, thereby saving you both costs and floor space.
Trapezoidal Roof Sheet Machine Greatest Advantage
●The width of the profiles produced by this machine is infinitely adjustable, requiring no replacement of rollers or cutting blades. Saves time and labor costs, and boosts production efficiency.
● The equipment operates as a fully automated production line, thereby ensuring exceptionally high production efficiency and consistent product quality.
●The production speed of a Trapezoidal Roof Sheet Machine can reach up to 52 feet per minute—a level of efficiency that far surpasses most traditional manufacturing methods.
Why Choose Our Machines?
●Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
●We offer flexible OEM/ODM customization services to meet your diverse requirements.
●Our machines have been exported to over 100 countries and regions worldwide.
●Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
How do we ensure the quality of our machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.

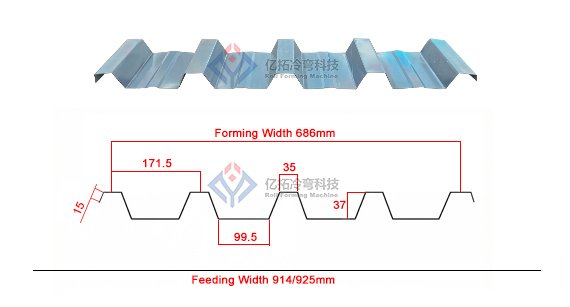

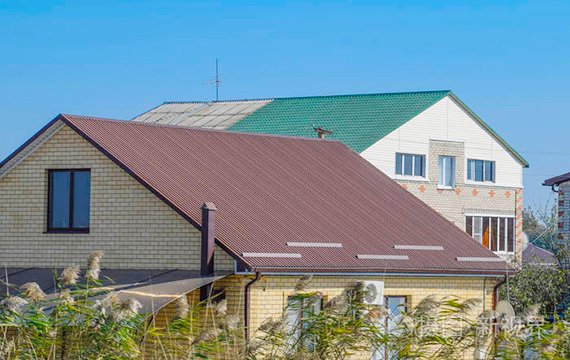

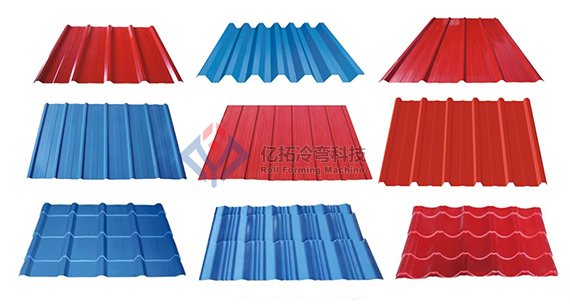

Trapezoidal Roof Sheet Specifications
The following are merely sample specifications for trapezoidal panels. Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.
Customize NowTrapezoidal Roof Sheet Specifications
Industrial Facilities Steel Structure Exterior Wall Panels Large-Span Public Buildings Trapezoidal Sandwich Panels
Why Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
We’ve been running this machine for over 18 months now, 10 hours a day. The frame is incredibly solid, and the hydraulic system (Siemens components) hasn't given us a single issue. For the price, the build quality is unmatched. It just works.
I was worried about setting up such a complex machine overseas, but their engineer guided us via video call. The manual was clear, and within 3 days we were producing perfect panels. Great after-sales service!
The panels are perfectly straight with no twisting. The machine arrived in Kenya well-protected in the wooden case—no rust, no dents. It saved us so much labor cost on site.
