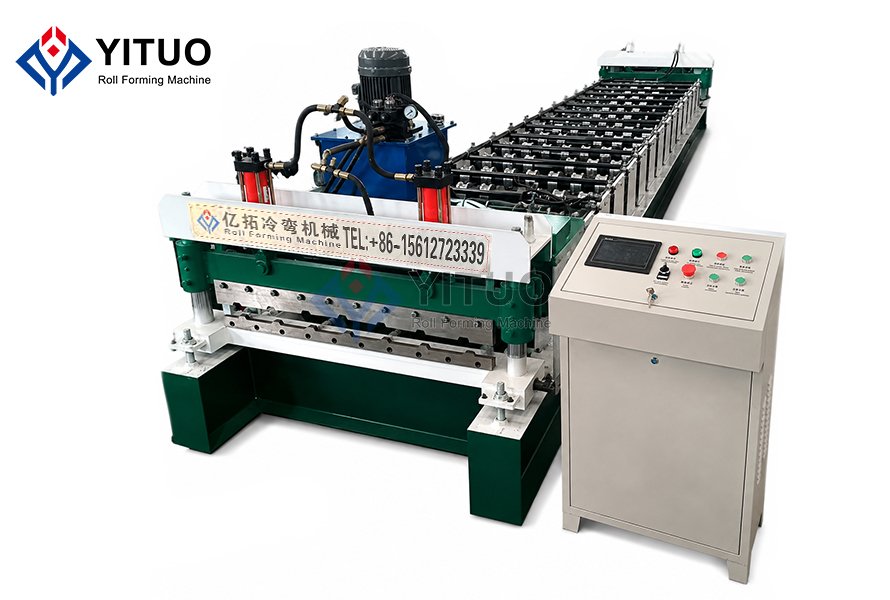

The Trapezoidal Wall Panel Roll Forming Machine is specially designed for manufacturing high-quality trapezoidal metal wall panels used in industrial buildings, warehouses, workshops, commercial buildings, and steel structure projects.This machine adopts advanced roll forming technology to continuously form galvanized steel (GI), pre-painted galvanized steel (PPGI), and aluminum coils into trapezoidal wall panels with accurate dimensions and excellent surface quality.With a stable structure, high forming precision, and automatic control system, this wall panel roll forming machine provides an efficient solution for customers who need reliable metal wall cladding panel production equipment.As a professional roll forming machine manufacturer in China, Yituo provides customized trapezoidal wall panel forming solutions according to customers’ panel drawings, material requirements, and production capacity.
Machine Operation Video
Trapezoidal Wall Panel Roll Forming Machine Advantages
Trapezoidal Wall Panel Roll Forming Machine Working Process

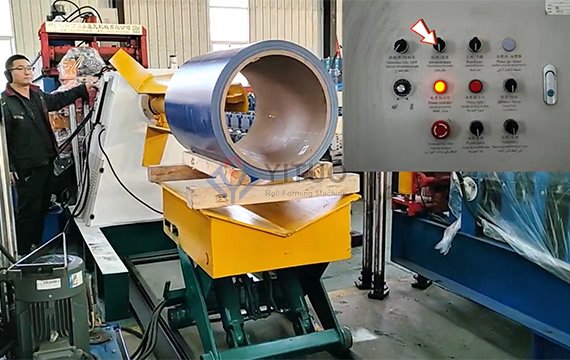

Steel Coil Loading
An overhead crane lifts the steel coil and places it onto a loading trolley; controlled by a PLC, the trolley moves the coil—using encoders and deceleration sensors for precise positioning—into the hydraulic uncoiler. This precise positioning prevents surface scratches on the coil and enhances both operational safety and efficiency.

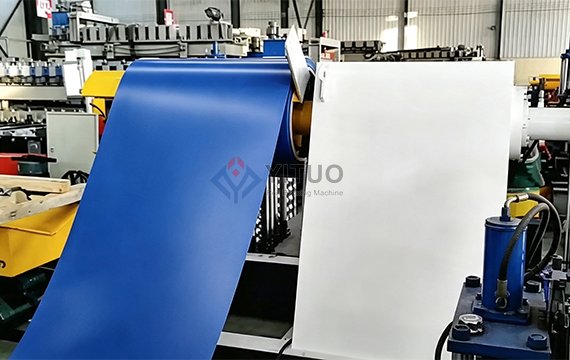

Hydraulic Decoiler
The decoiler automatically expands the mandrel through a hydraulic cylinder, ensuring the steel coil remains firmly positioned throughout the production process.An automatic uncoiler is provided free of charge by default; if you require a hydraulic electric uncoiler, we will confirm the price with you.

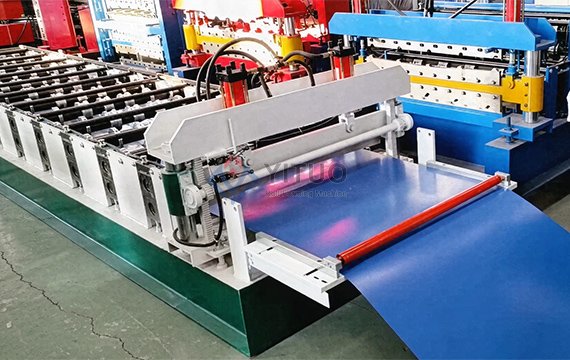

Shearing after feeding
Equipped with an automatic fixed-length pre-cutting system, the trapezoidal wall panel roll forming machine minimizes material waste, lowers production costs, and increases operational flexibility. This design effectively reduces unnecessary material loss during the forming process

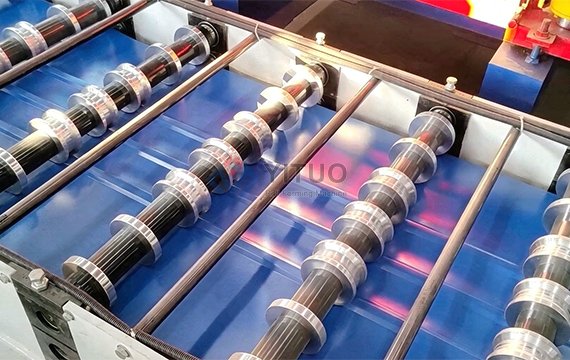

Cr12 Tool Steel Forming Rollers
Cr12 possesses exceptional wear resistance and compressive strength; upon quenching,, enabling it to maintain its roller profile without wear and preserve precise tile geometry over extended periods.

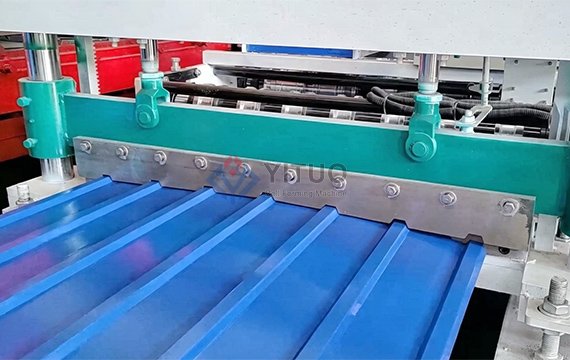

Hydraulic cutting of Cr12MoV tool steel
The Cr12MoV tool steel cutter ensures clean, smooth cuts without deforming the finished sheet. The hydraulic cutting process is synchronized with the equipment's operation via a PLC system, guaranteeing precise cutting lengths with minimal deviation.

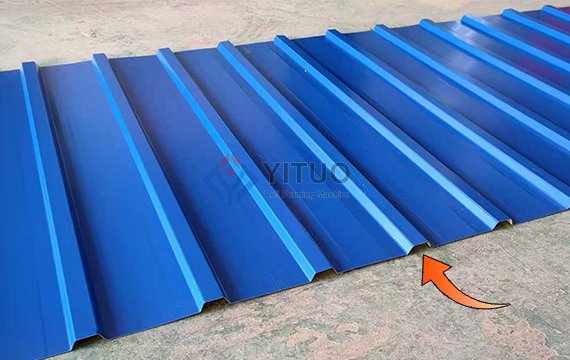

Panel Splicing
The key to achieving seamless panel connections lies in the precision of the roll-forming system. This relies on precision manufacturing processes for every machine component, ensuring that each trapezoidal wall panel maintains a consistent cross-sectional profile, width, and edge shape throughout production.
Trapezoidal Wall Panel Roll Forming Machine Technical Parameters
Item | Specification |
Machine Type | Trapezoidal Wall Panel Roll Forming Machine |
Raw Material | GI / PPGI / Aluminum Coil |
Material Thickness | 0.3-0.8 mm |
Feeding Width | 1000 mm |
Forming Speed | 15-25 m/min |
Forming Stations | Customized |
Main Motor Power | 7.5 KW |
Hydraulic Station Power | 5.5 KW |
Forming rows | 18 rows |
Roller material: | Cr12 |
Control System | PLC Automatic Control |
Cutting Type | Hydraulic Cutting |
Cutting blade material | Cr12MoV |
Voltage | Customized According to Customer Requirement |
Features of the Trapezoidal Wall Panel Roll Forming Machine

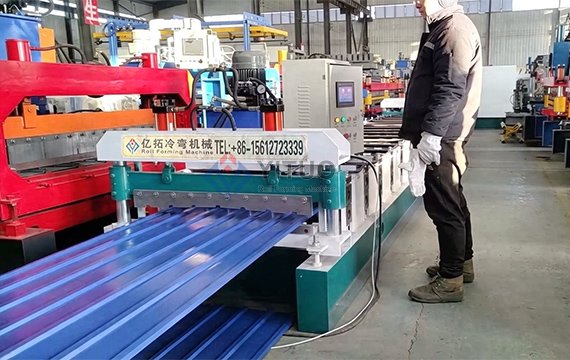

High-Precision Trapezoidal Panel Forming

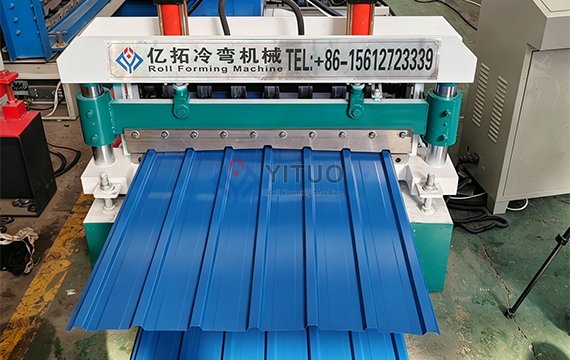

This machine utilizes precision-machined forming rollers to progressively shape metal coils into the required trapezoidal cross-section. The finished panels feature precise dimensional accuracy, a smooth and flat surface finish, excellent structural performance, and consistent quality. The forming rollers are designed based on the panel profile drawings provided by the customer, ensuring a perfect match with the final product.

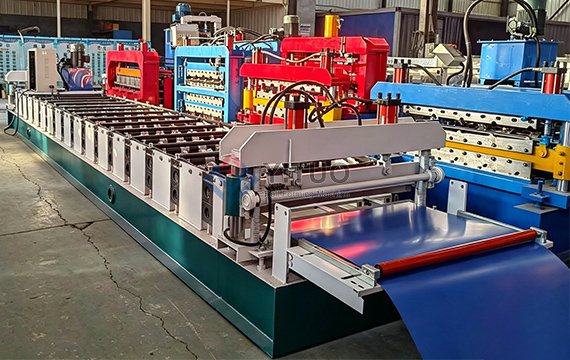

Send Inquiry NowAutomated Continuous Production
The trapezoidal wall panel roll forming machine employs a fully automated production process, encompassing coil feeding, panel forming, length measurement, hydraulic cutting, and finished product discharge. A PLC control system allows operators to easily configure production parameters, thereby enhancing efficiency. Compared to traditional manual production methods, this equipment significantly reduces labor costs and boosts production capacity.
Send Inquiry Now

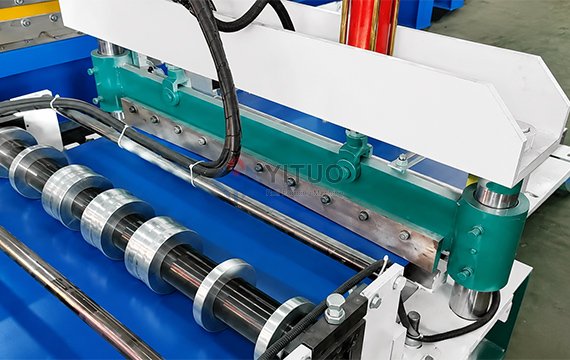

Dual Shear Station, Reducing Scrap
Equipped with an automatic fixed-length pre-cutting system, the trapezoidal wall panel roll forming machine minimizes material waste, lowers production costs, and increases operational flexibility. This design effectively reduces unnecessary material loss during the forming process—offering distinct advantages, particularly when producing short panels or multiple specifications—thereby delivering tangible cost savings for the customer.
Contact EngineerWhy Choose Our Trapezoidal Wall Panel Roll Forming Machine?
Yituo specializes in designing and manufacturing customized roll forming machines for global customers.
●We design machines according to your product drawings and production requirements.
●High-quality components ensure long-term stable operation.
●Our machines have been exported to many countries and regions worldwide.
●We provide installation guidance, operation training, and after-sales service.

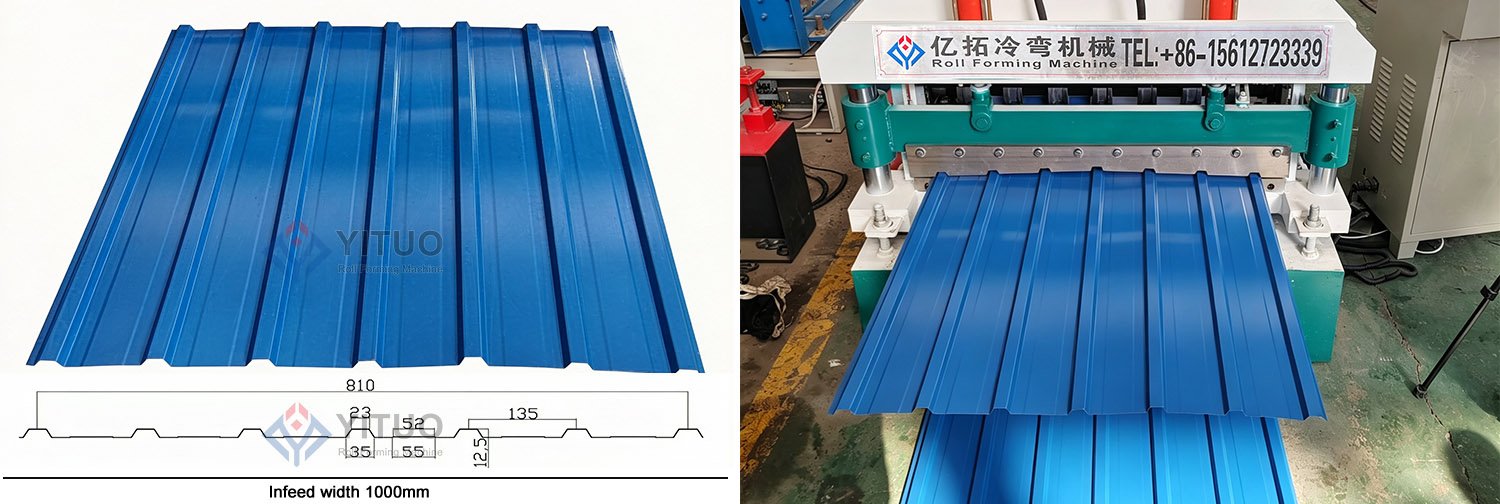

Brazilian Client Trapezoidal Wall Panel Roll Forming Machine Project Case
A building material manufacturer from Brazil was looking for a reliable production solution to expand its metal wall panel business. The customer mainly supplied steel structure construction projects, including industrial workshops, warehouses, and commercial buildings.Before purchasing our machine, the customer purchased finished trapezoidal wall panels from local suppliers. However, with the increasing demand for customized wall panels, the customer faced several challenges:
* High material purchasing costs
* Long delivery time for finished panels
* Limited production flexibility
* Difficulty in controlling panel quality and delivery schedules
To improve production efficiency and reduce manufacturing costs, the customer decided to invest in a complete Trapezoidal Wall Panel Roll Forming Machine for in-house panel production.
After putting the machine into production, the customer was able to manufacture wall panels independently, shorten delivery time, and provide faster service to local construction projects.
If you also need a similar solution,Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.

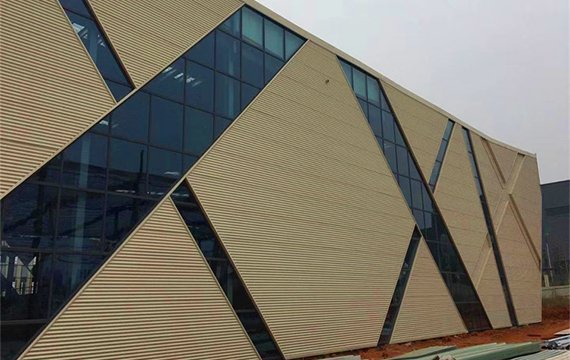

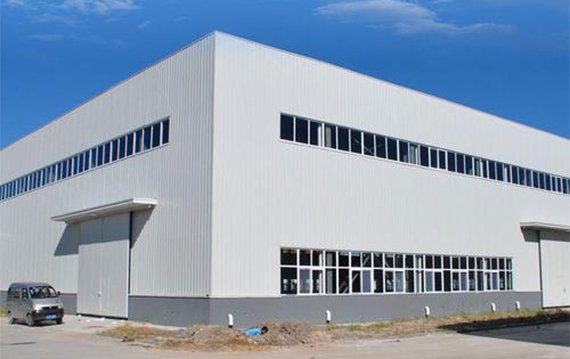

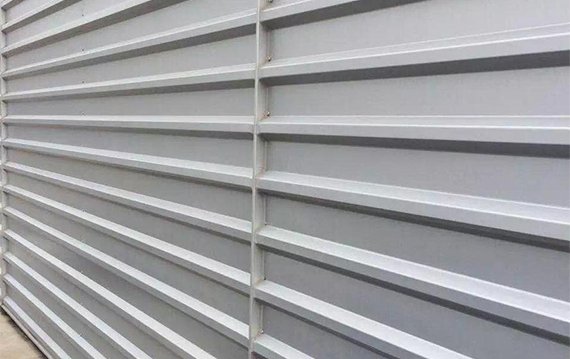

Customize NowApplication Scenarios
Why Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
