U Channel Roll Forming Machine Manufacturer in China
The U Channel Roll Forming Machine is designed for the continuous production of high-strength U-shaped steel profiles. By passing metal strips through multiple sets of precision forming rollers, the machine gradually forms flat steel coils into finished U channel profiles with consistent dimensions and excellent profile accuracy.This machine is suitable for producing customized U-shaped profiles according to customer drawings and application requirements. The profile shown in the drawing has an approximate overall width of 50.8 mm, a height of 25.4 mm, and a material thickness of 3 mm.Our U Channel Roll Forming Machine is widely used in construction, steel structures, industrial equipment, storage systems, frames, supports, transportation equipment, and other industries requiring strong and accurately formed steel channels.With a robust machine frame, precision roll forming stations, reliable transmission system, hydraulic cutting system, and automatic PLC control, the production line can achieve stable and continuous operation.
Machine Operation Video

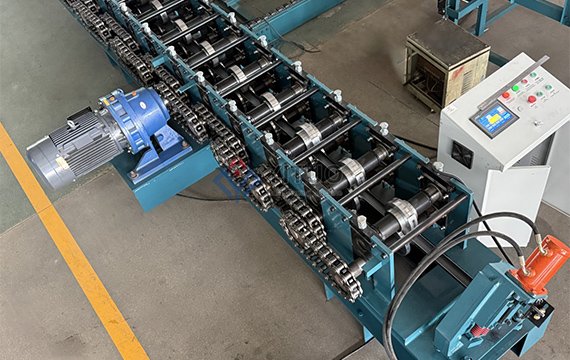

U Channel Roll Forming Machine Advantages
U Channel Roll Forming Machine Detail

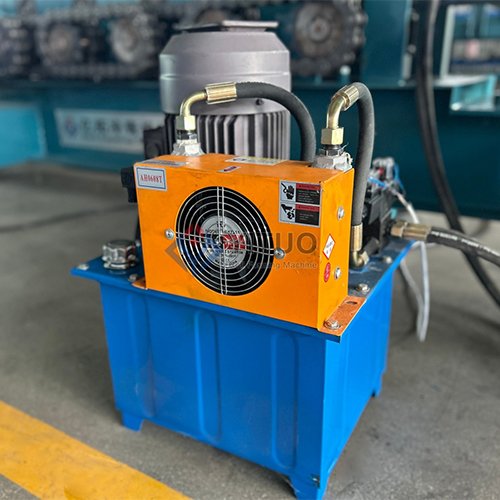

15KW Pumping Station
Equipped with an air-cooling system to ensure the temperature remains low.
Send Inquiry Now

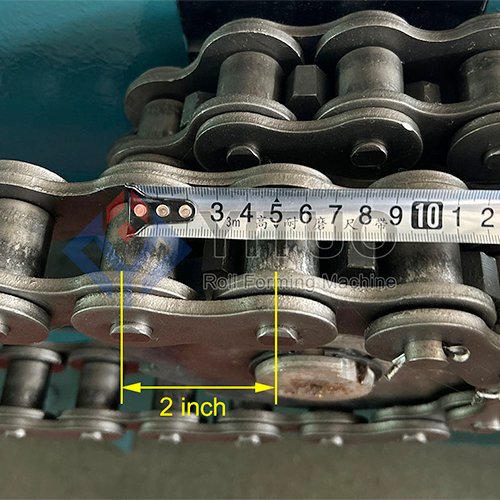

2-inch Chain
High heavy-load capacity
Resistant to tooth skipping during transmission

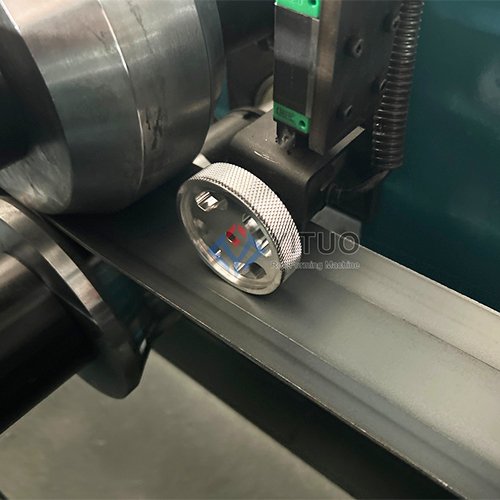

Metal Knurled Meter Counter
High measurement accuracy
Slip-resistant, wear-resistant, and durable

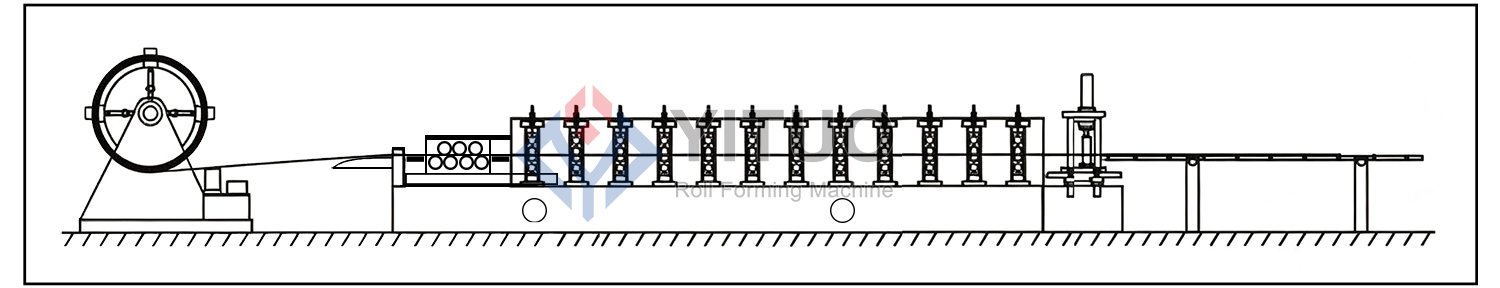

U Channel Roll Forming Machine Working Process

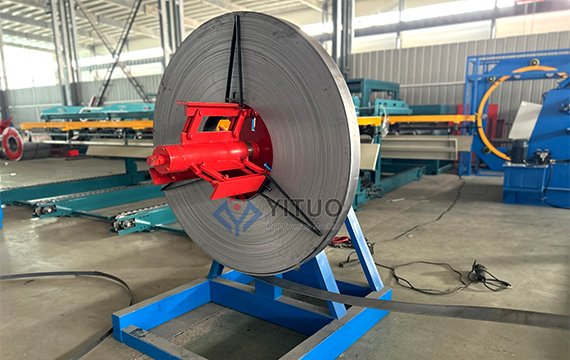

Automatic Uncoiler
An automatic uncoiler is provided free of charge by default; if a hydraulic electric uncoiler is required, we will confirm the price with you.
Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.The feed width is adjustable.

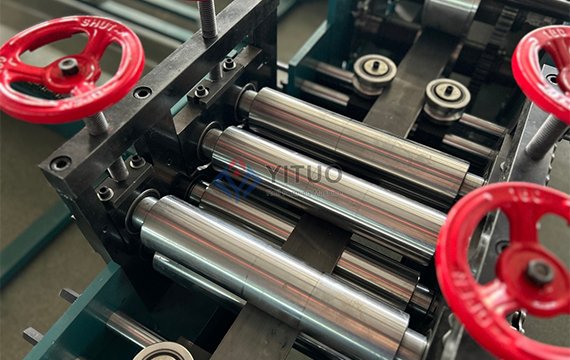

Leveling rollers
Leveling rolls apply controlled pressure to the material to correct deformations caused during the coiling process. This ensures that the steel strip enters the roll-forming stage in a smoother and flatter condition.

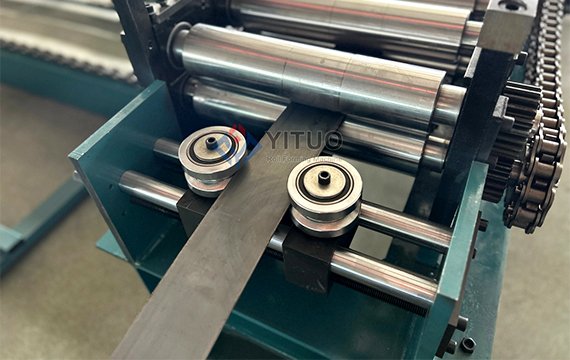

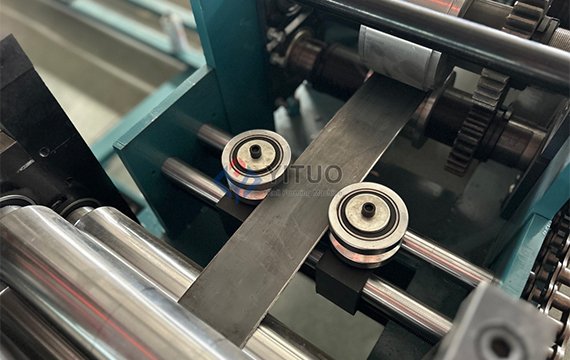

Guide Roller With Limit Function
Features bilaterally adjustable guide rollers that rotate freely on bearings; they offer low frictional resistance, prevent damage to the panel edges, and precisely prevent the panel from drifting.

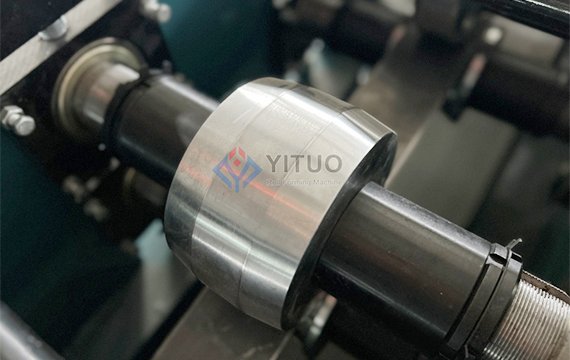

Cr12 Forming Roll
Cr12 offers exceptional wear resistance and compressive strength. After quenching, the material retains its roll profile during prolonged use without wearing down, thereby ensuring long-term stability in the geometric precision of the tiles.

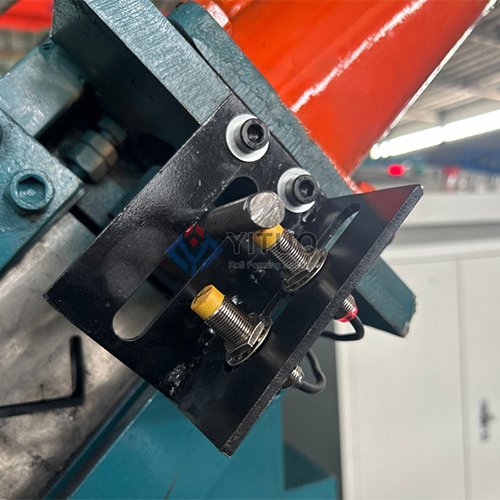

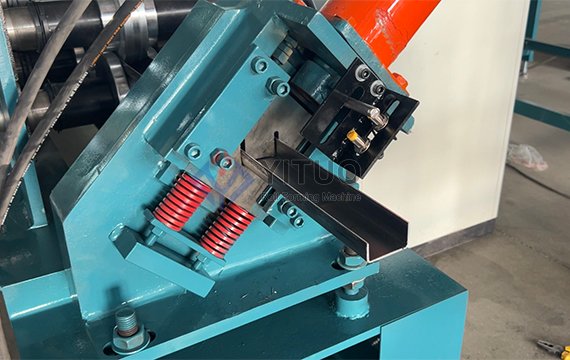

Hydraulic cutting of Cr12MoV tool steel
The Cr12MoV tool steel cutter ensures clean, smooth cuts without deforming the finished sheet. The hydraulic cutting process is synchronized with the equipment's operation via a PLC system, guaranteeing precise cutting lengths with minimal deviation.
U Channel Roll Forming Machine Technical Parameters
Item | Specification |
Machine Name | U Channel Roll Forming Machine |
Profile Type | U Shape / U Channel |
Feeding width | 60-110mm |
Molding width | 50.8mm |
Molding height | 10-60mm |
Material Type | Carbon Steel / Galvanized Steel / Other |
Production Speed | 16m/min |
Forming Stations | 12-row forming |
Roller Material | CR12 |
Pumping station | 5.5KW |
Main Motor | 15KW |
Transmission Type | Chain Drive |
Cutting | Hydraulic Cutting CR12MOV |
Length Measurement | Encoder |

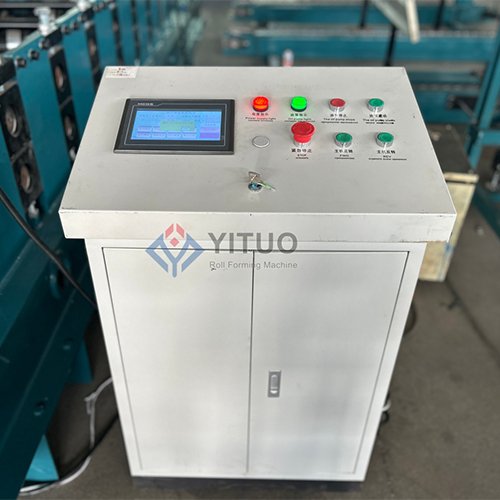

Control System | PLC Control |
Voltage | 380V |
U Channel Roll Forming Machine Advantages
1. High-precision profile forming with a forming tolerance of no more than ±1mm.
2. Suitable for steel plates with a thickness of 3mm; the U-channel roll forming machine offers exceptional strength and stability.
3. Highly flexible; both the steel feed width and the forming width are adjustable.
4. Fully automated operation, enabling a continuous production line that encompasses uncoiling, leveling, forming, cutting, conveying, stacking, and bundling.

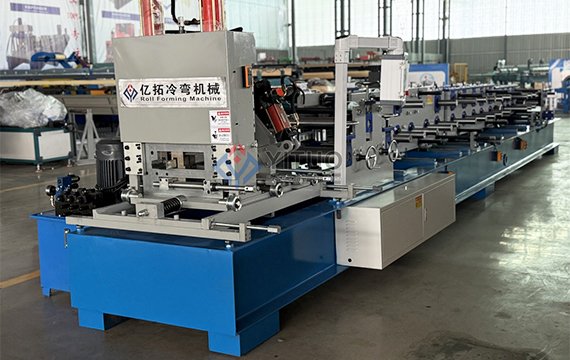

If you need a machine to produce CZU
For us, CAU roll forming technology is highly mature. We can rapidly manufacture machines featuring automatic profile changing, non-stop cutting, and dual-line simultaneous output. Our machines are rationally configured, durable, and easy to maintain; we provide a comprehensive, one-stop solution, so please contact us if you have any requirements.
Send Inquiry Now
How do We Ensure The Quality of Our Machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.
Why Choose Our Machines?
● Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
● We offer flexible OEM/ODM customization services to meet your diverse requirements.
● Our machines have been exported to over 100 countries and regions worldwide.
● Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
Chilean Client Case---U Channel Roll Forming Machine
A tailored cold roll forming solution for a Chilean profile manufacturer
A Chilean manufacturer sought a reliable, efficient solution for producing custom U-channels for industrial applications. The client required equipment capable of processing thicker steel while ensuring consistent profile dimensions and stable production performance. Based on the provided drawings, the required U-channel featured an overall width of approximately 50.8 mm, a height of 25.4 mm, and a material thickness of 3 mm. The client needed more than just a standard forming machine; they required a customized production solution designed to meet specific profile requirements, boost manufacturing efficiency, and minimize manual labor during production.
Each U-channel production project entails unique requirements based on profile shape, material strength, thickness, and application. Our team can review your technical drawings and discuss the appropriate roll forming machine configuration. Whether you require standard U-channels or custom profiles, we can evaluate the forming process and necessary machine components to meet your specific production requirements.
Customize NowWhy Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
