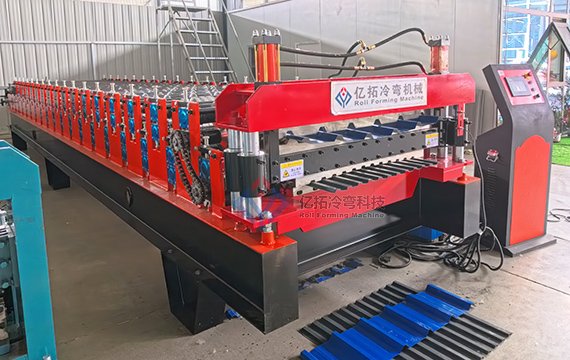

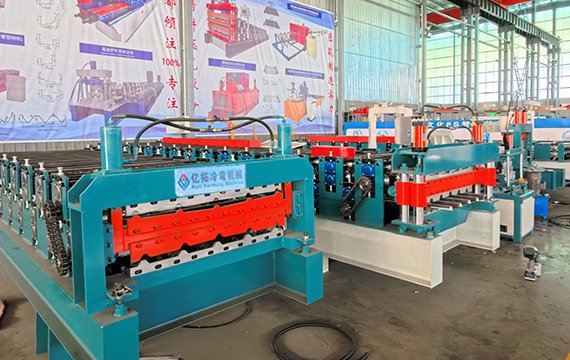

Double Layer Roll Forming Machine Manufacturer In China
Supplied by Cangzhou Yituo Roll Forming Machine Co., Ltd.—a leading Chinese provider of roof panel forming machinery—the Double Layer Roll Forming Machine has been successfully exported to and widely adopted in Russia, the United States, Canada, Dubai, India, Australia, as well as various other countries and regions across Asia, Europe, and the Middle East. This global reach underscores the vast market potential for this equipment, particularly in regions like Russia. To facilitate the production of diverse metal roofing and wall panels, the machine is equipped with two independent sets of forming rollers; its accompanying stacking system features adjustable height settings to accommodate the specific profile dimensions of both the upper and lower forming layers. This Double Layer Roll Forming Machine is capable of producing two distinct profiles, including corrugated panels, wall panels, roof panels, floor decking, trapezoidal panels, and more. Utilizing this equipment not only results in substantial space savings within the factory but also leads to a significant boost in operational efficiency. If you are interested in roof panel forming machinery from China, we invite you to contact us at any time.
Machine Working Video
Double Layer Roll Forming Machine Features
Double Layer Roll Forming Machine Accessories
Delta VFD PLC HMI
Schneider Electrical Components
Siemens Other Accessories

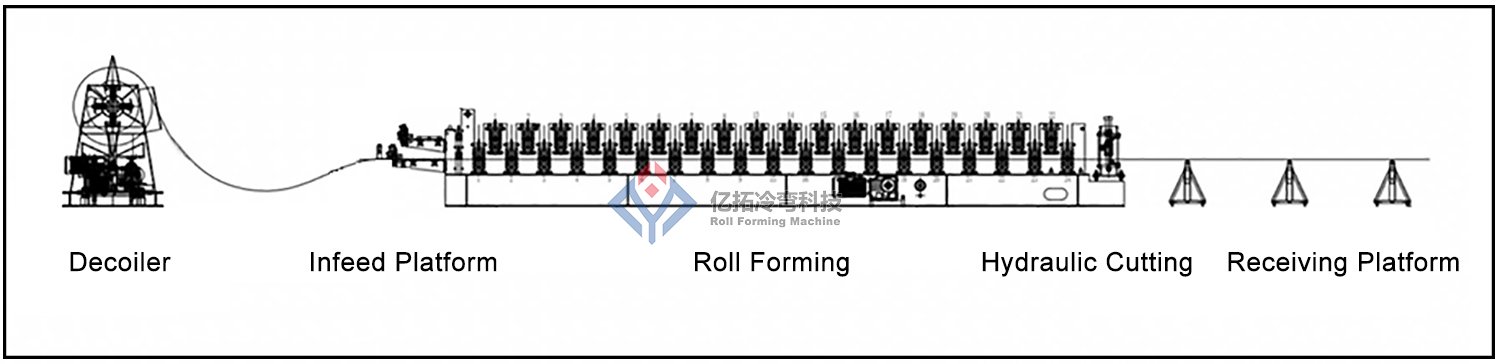

Double Layer Roll Forming Machine Working Process

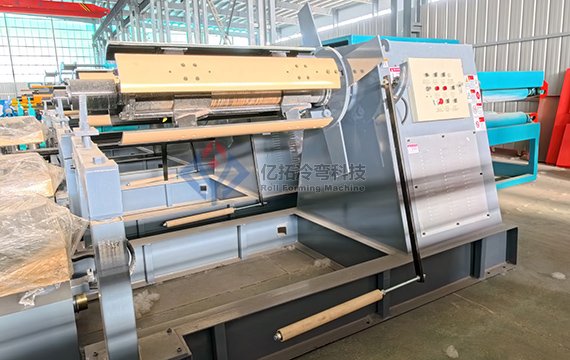

Decoiler
A manual decoiler is provided as a standard accessory; if you require an electric decoiler, we will confirm the specifications and pricing with you.

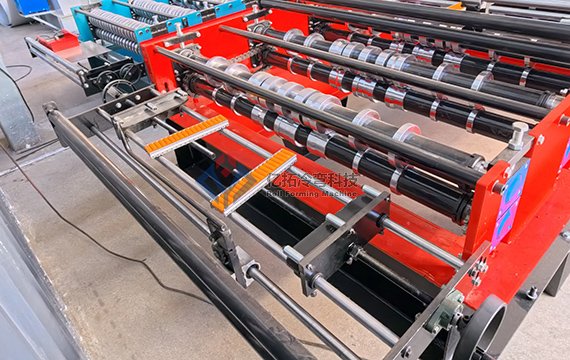

Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.The feed width is adjustable and features a manual cutting blade.
SKD11 Roller
SKD11 possesses exceptional wear resistance and compressive strength; upon quenching, it achieves a hardness of HRC 58–62, enabling it to maintain its roller profile without wear and preserve precise tile geometry over extended periods.

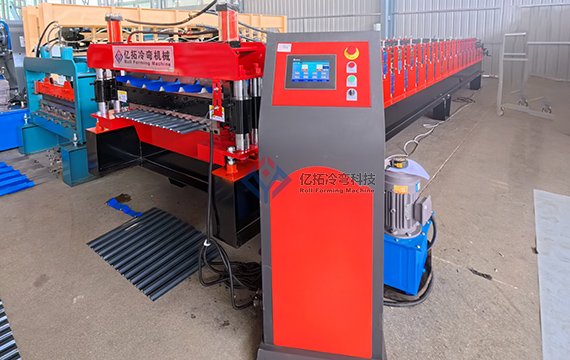

Vertical Electrical Control Cabinet
Equipped entirely with international-brand components and electrical parts, it offers precise control and exceptional durability, making it suitable for continuous operation.

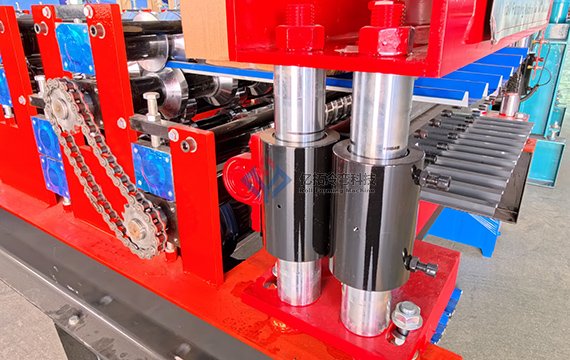

Double-column cutting
The double-column cutting tool holder operates without vibration, producing cuts that are flat and free of burrs; it features strong resistance to eccentric loads and offers extended tool life.

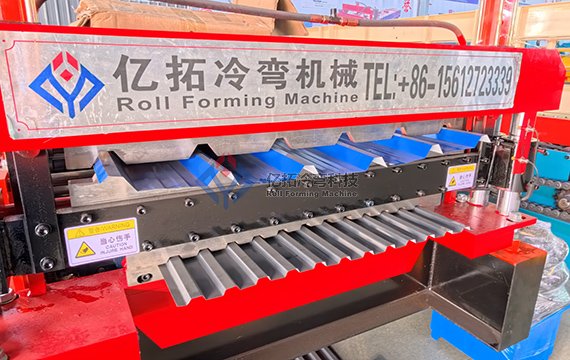

Cr12MoV Shear Blade
After undergoing quenching and low-temperature tempering, Cr12MoV shear blades achieve a hardness of HRC 58–62. The cutting edges are sharp and wear-resistant, highly resistant to compressive forces without easily collapsing, and produce clean, flat cuts.
Double Layer Roll Forming Machine Key Attributes
Formed Material | GI/GL, PPGI/PPGL |
Thickness | 0.3-0.8mm |
Decoiler | Manual decoiler(will give you as free) |

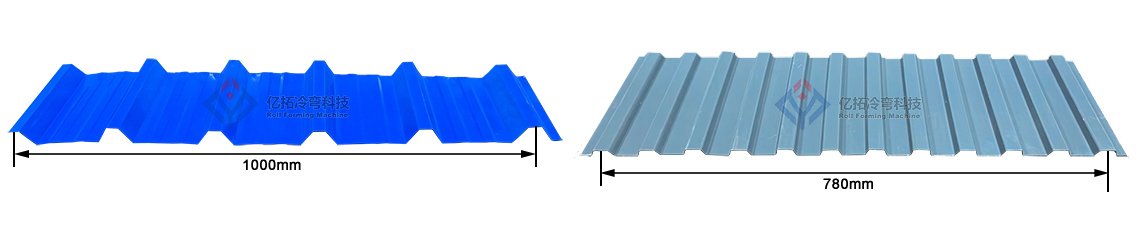

Roller station | 17+20 rows (Based on your drawings) |
Diameter of shaft | 70mm solid shaft |
Material of rollers | SKD11 |
Cutter | Cr12MOV steel cutting blade quenched treatment |
Power | 7.5KW |
Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
Control system Language | English, Spanish, etc.(Support multiple languages) |
Voltage | 380V 50Hz 3Phase (As your requirement) |
Forming Speed | 10-20 m/min |
Double Layer Roll Forming Machine Advantage
● All machine components are sourced from renowned brands, including Siemens, Schneider, and Delta.
● It utilizes a VFD, PLC, and HMI to enable automated roll forming and cutting operations.
● Cutting lengths can be automatically programmed and set via a touchscreen interface.
● The cutting blades are crafted from Cr12MoV, while the forming rollers are made of SKD11.
● It features powerful performance, a robust machine frame, and stable operation.Custom designs are available upon request.
Why Choose Our Machines?
●Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
●We offer flexible OEM/ODM customization services to meet your diverse requirements.
●Our machines have been exported to over 100 countries and regions worldwide.
●Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
How do we ensure the quality of our machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.

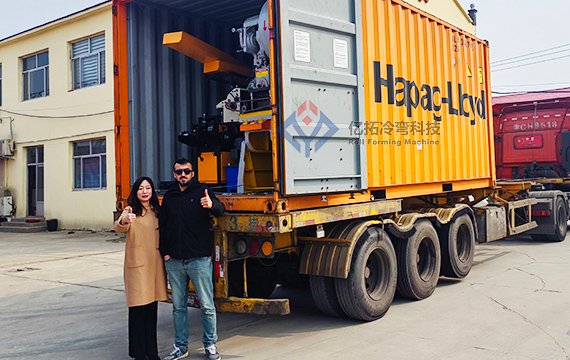

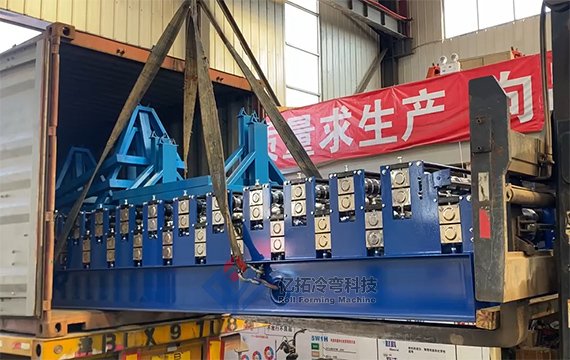

● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.
Saudi Arabia Double Layer Roll Forming Machine Project Case
The content above describes a high-end double layer roof panel roll forming machine ordered by a major steel structure contractor in Saudi Arabia.The customer mainly serves industrial buildings, logistics parks, luxury villas, and commercial roofing projects across Riyadh and Jeddah.Due to the harsh climate conditions in the Middle East, including high temperatures, sandstorms, and strong UV exposure, the customer required a machine with excellent stability, long service life, and high production precision. After comparing multiple suppliers from China, Turkey, and Europe, the customer finally chose our premium customized solution.
The Saudi customer focused heavily on:
* Machine durability under continuous high-temperature operation
* Stable hydraulic and electrical systems
* Accurate sheet forming effect
* Fast profile switching efficiency
* International brand components only
* Long-term after-sales support
The customer was highly satisfied with the machine quality and production efficiency. The project later helped the customer secure additional roofing supply contracts in the Saudi construction market.
If you also need a similar solution,Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.

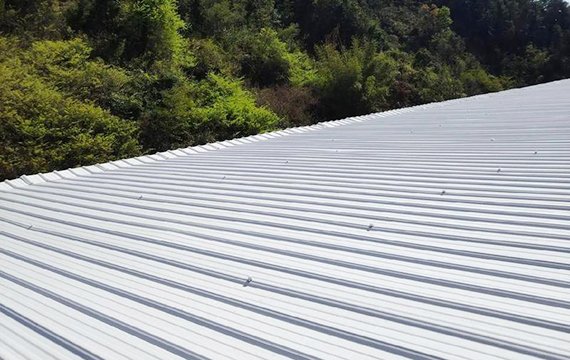

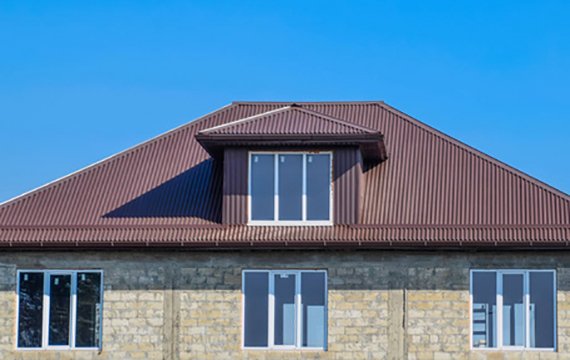

Talk To EngineerDouble Layer Roofing Panel Applications

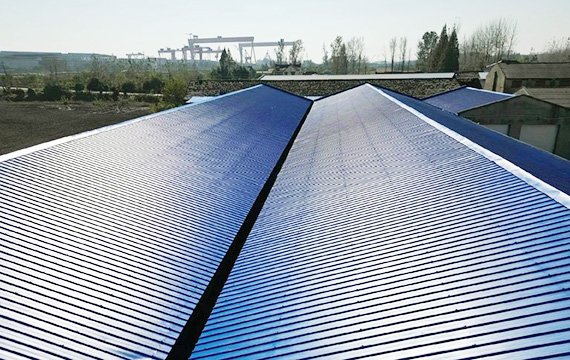

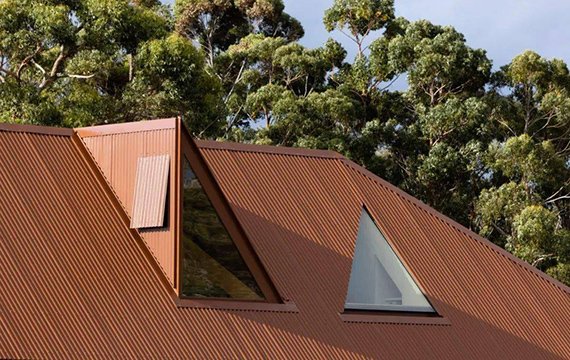

Industrial Facilities Steel Structure Exterior Wall Panels Large-Span Public Buildings Trapezoidal Sandwich Panels
Why Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
We’ve been running this machine for over 18 months now, 10 hours a day. The frame is incredibly solid, and the hydraulic system (Siemens components) hasn't given us a single issue. For the price, the build quality is unmatched. It just works.
I was worried about setting up such a complex machine overseas, but their engineer guided us via video call. The manual was clear, and within 3 days we were producing perfect panels. Great after-sales service!
The panels are perfectly straight, without the slightest distortion. The machinery arrived in Kenya in pristine condition—free of both rust and dents. This saved us a significant amount in on-site labor costs.
