Wall Panel Roll Forming Machine Manufacturer in China

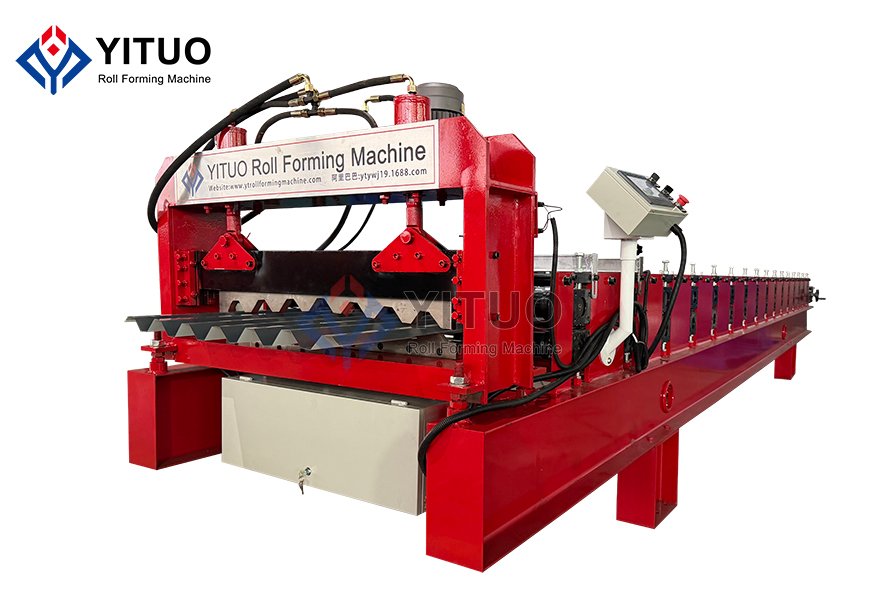

The 750 Wall Panel Roll Forming Machine is a professional metal forming solution designed to manufacture high-quality 750 profile wall panels for industrial, commercial, and agricultural buildings. With a horizontal machine layout, precision forming rollers, and an integrated Delta electrical control system, this machine provides a practical and efficient solution for metal wall cladding production.Designed according to the customer's wall panel profile drawing, the machine gradually forms flat metal coils into corrugated wall panels through multiple forming stations. The carefully designed roller arrangement helps ensure consistent panel dimensions, uniform corrugations, and a smooth finished surface.The machine is equipped with a Delta touchscreen HMI and Delta electrical control components, allowing operators to conveniently set production parameters, monitor machine operation, and manage the automatic cutting process. With the appropriate feeding and cutting configuration, it can produce wall panels in different lengths to meet the requirements of various building projects.The 750 wall panel roll forming machine is suitable for manufacturers producing metal wall cladding for steel structure workshops, warehouses, factories, agricultural buildings, and other construction projects. Customized configurations are available according to the required wall panel profile, material thickness, production capacity, and local electrical standards.
Machine Operation Video
Wall Panel Roll Forming Machine Advantages

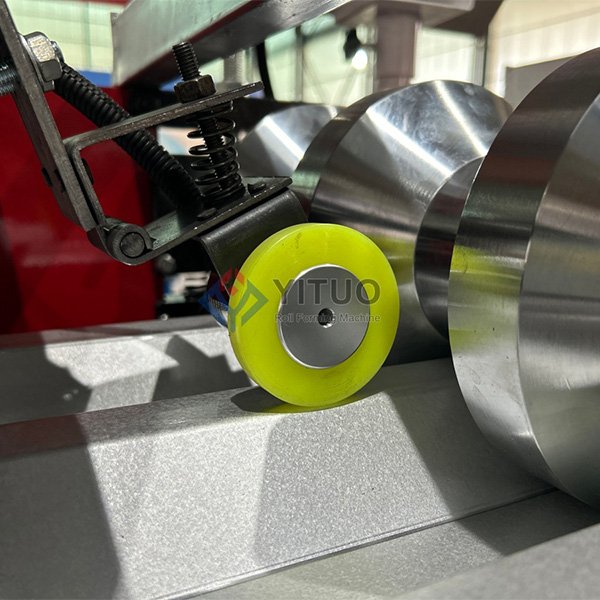

Wall Panel Roll Forming Machine Detail

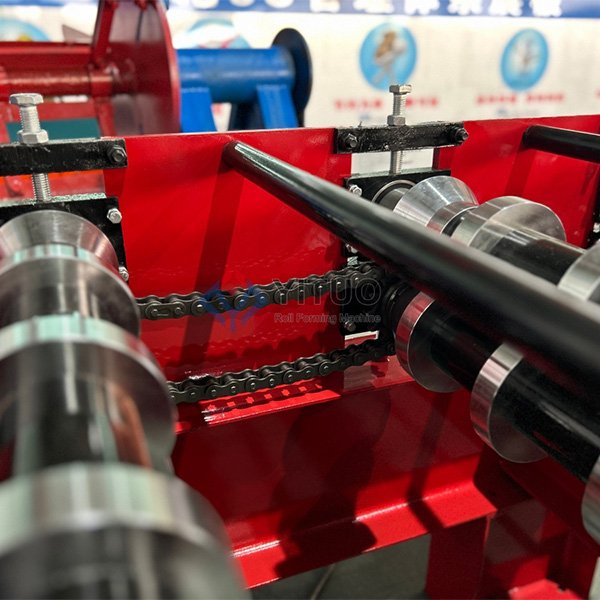

1-inch Chain
High heavy-load capacity
Resistant to tooth skipping during transmission
Wall Panel Roll Forming Machine Working Process

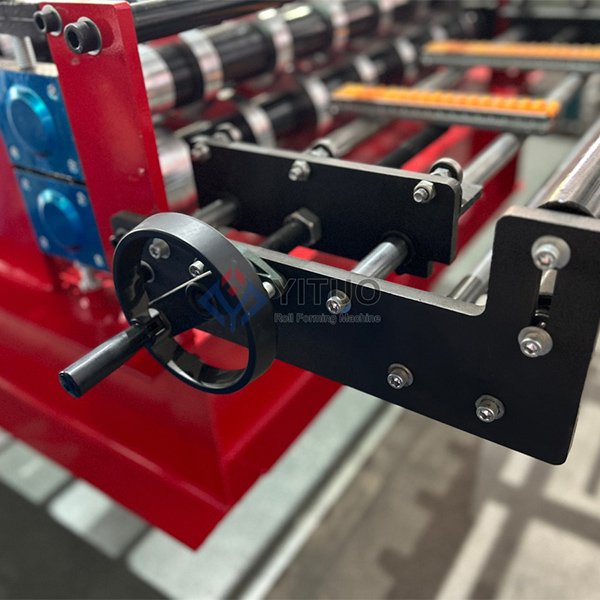

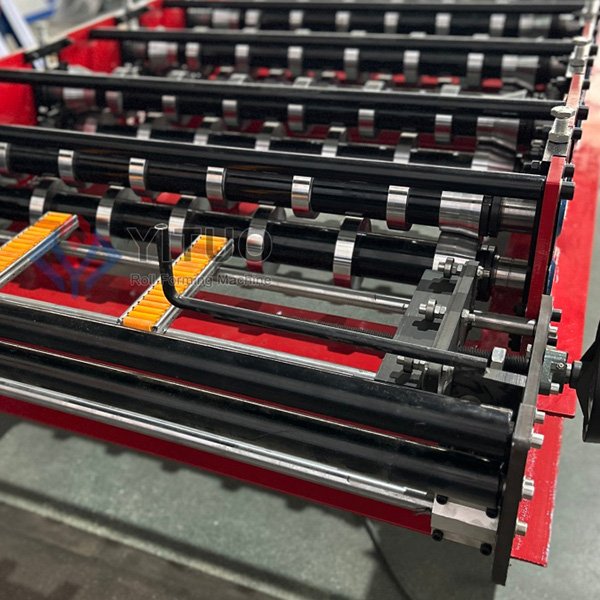

Feeding & Guiding System
The feeding system ensures that the steel strip enters the roll forming section accurately without deviation.Adjustable side guiding rollers allow operators to align different coil widths quickly, ensuring every roofing sheet is formed with excellent dimensional accuracy.

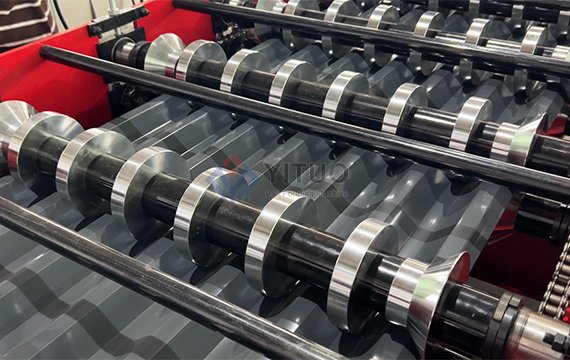

Cr12 Forming Roll
Cr12 offers exceptional wear resistance and compressive strength. After quenching, the material retains its roll profile during prolonged use without wearing down, thereby ensuring long-term stability in the geometric precision of the tiles.

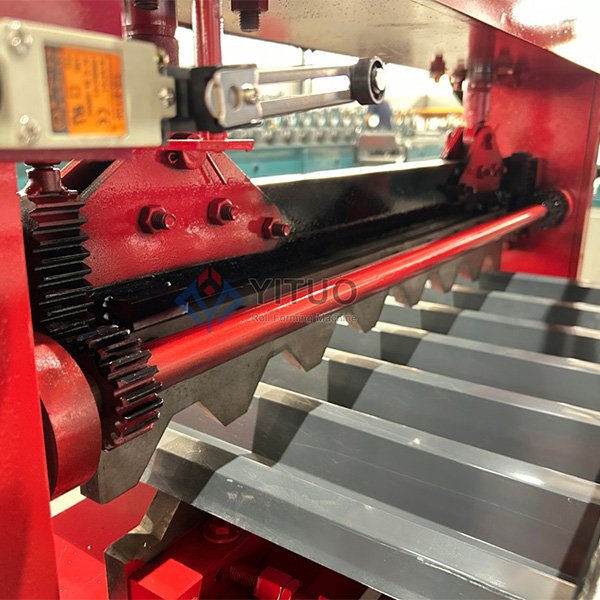

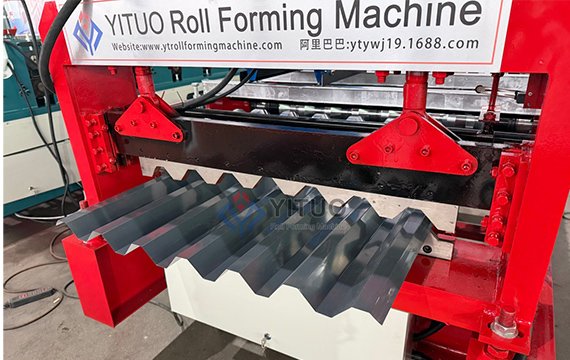

Hydraulic cutting of Cr12MoV tool steel
The Cr12MoV tool steel cutter ensures clean, smooth cuts without deforming the finished sheet. The hydraulic cutting process is synchronized with the equipment's operation via a PLC system, guaranteeing precise cutting lengths with minimal deviation.

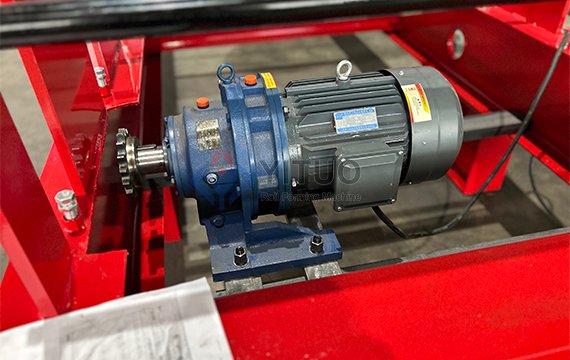

7.5 kW Main Motor
Powerful performance with stable load handling; capable of sustained, long-term mass production; high-temperature resistant and resistant to overloading; high torque; smooth, quiet operation.

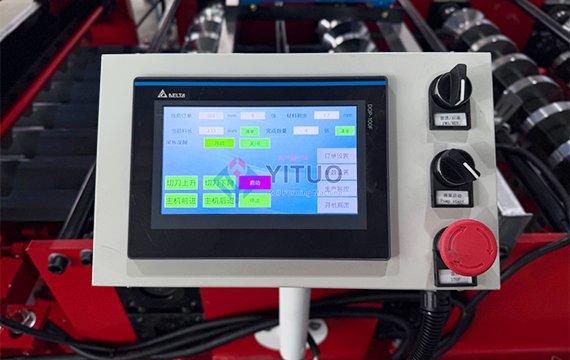

Delta Display and PLC
Stable operation, resistant to workshop dust interference, low failure rate, precise length control, minimal cutting error, intuitive user interface, multi-language support, fast response speed, one-touch parameter saving and recall, industrial-grade quality, CE certified, and easy maintenance.

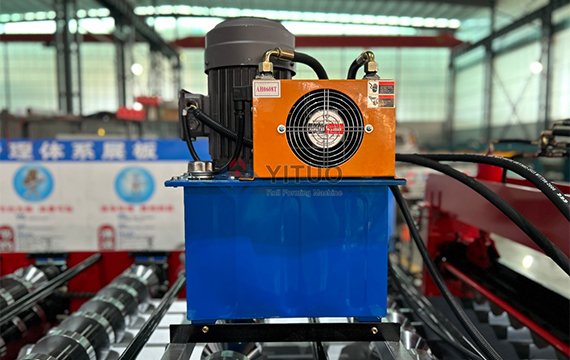

5.5 kW Hydraulic Pump Station
The hydraulic shear delivers powerful cutting force, slicing cleanly through thick plates without stalling. It maintains stable pressure and resists overheating or pressure loss during prolonged, continuous operation. Equipped with overload protection and impact resistance, it minimizes downtime and enhances overall machine efficiency.
Wall Panel Roll Forming Machine Technical Parameters
Item | Specification |
Machine name | 750 Wall Panel Roll Forming Machine |
Nominal profile width | 750 mm |
Corrugation pitch | 125 mm |
Approximate crest width | 29 mm |
Approximate wave height | 35 mm |
Raw material | PPGI, PPGL, galvanized steel (subject to confirmation) |
Material thickness | 0.5-0.8mm |
Feeding width | 1000mm |
Forming stations | 16-row forming |
Roller material | CR12 |
Main motor power | 7.5KW |
Pumping station | 5.5KW |
Forming speed | 18m/min |
Cutting method | Hydraulic cutting |
Control system | Delta electrical control |
Touchscreen | Delta HMI |
Voltage | 380v |

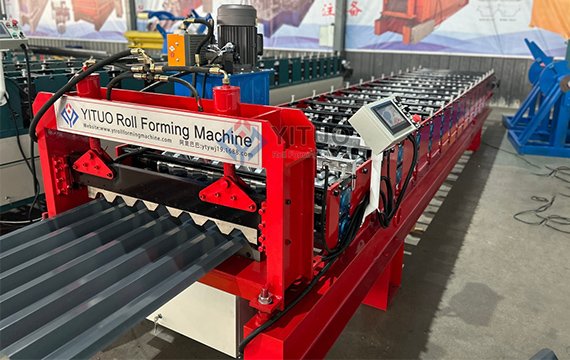

Wall Panel Roll Forming Machine Advantage
● Features Delta electronic controls and a display screen with a multi-language interface, ensuring precise length measurement and rapid response.
● Equipped with CR12 forming rollers that undergo quenching; the profile radius remains undeformed even after prolonged use, offering exceptional durability—ideal for high-volume production needs.
● Utilizes a CR12MoV cutting blade that delivers clean, burr-free cuts; the hydraulic shearing system provides powerful force and a long service life.
● The main frame and components feature thickened, heavy-duty construction for superior stability and durability; anchor bolts can be used to secure the machine to the floor.
If you need other exterior wall panels...
686, TR5, 780, Great Wall panels, wall cladding panels...In short, we can manufacture any standard or custom machine you require. Backed by our own team of professional engineers and designers—who are highly experienced and committed to continuous learning—we match the machine's configuration to your specific speed requirements, ensuring quality rather than cutting corners on specifications just to lower the price.
Send Inquiry Now
How do We Ensure The Quality of Our Machines?
● The electrical system utilizes components from Delta and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.
Why Choose Our Machines?
● Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
● We offer flexible OEM/ODM customization services to meet your diverse requirements.
● Our machines have been exported to over 100 countries and regions worldwide.
● Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.

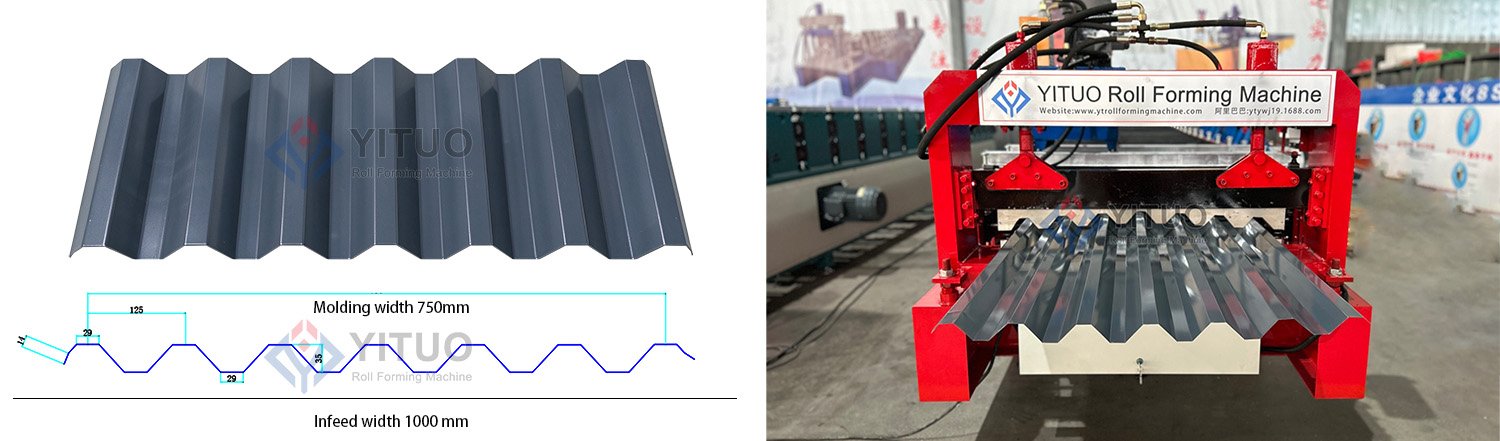

Saudi Arabia Wall Panel Roll Forming Machine-Project Case
A customer from Saudi Arabia was looking for a reliable 750 horizontal wall panel roll forming machine to expand their metal building materials production capacity. The customer planned to manufacture corrugated metal wall panels for steel structure buildings, industrial workshops, warehouses, and commercial construction projects.Considering the requirements of the local construction market, the customer needed a machine that could produce wall panels with consistent dimensions, uniform corrugations, and a smooth surface finish. Flexible panel lengths and convenient operation were also important factors in the equipment selection process.After discussing the customer's production requirements and reviewing the 750 wall panel profile drawing, we proposed a customized horizontal wall panel roll forming machine equipped with a Delta touchscreen and Delta electrical control system.
Each Wall Panel production project entails unique requirements based on profile shape, material strength, thickness, and application. Our team can review your technical drawings and discuss the appropriate roll forming machine configuration. Whether you require standard Wall Panel or custom profiles, we can evaluate the forming process and necessary machine components to meet your specific production requirements.
