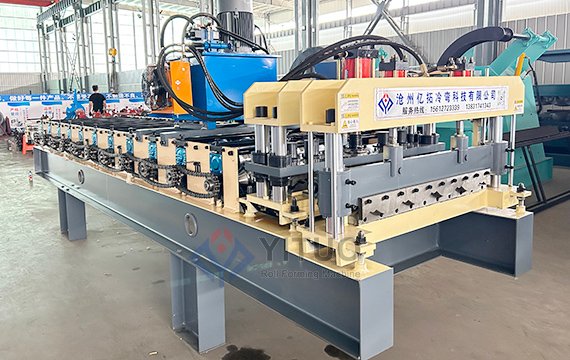

828 Glazed Tile Roll Forming Machine---One Stop Solution
The most distinctive feature of the Glazed Tile Roll Forming Machine is its robustness and durability, coupled with its virtually maintenance-free operation. This is because the resulting tiles are built to withstand a wide range of climatic conditions, and they can be specially treated to prevent the growth of mold and moss. Consequently, your roof will retain its aesthetic appeal for decades to come, requiring no subsequent maintenance. Metal roofing is lighter than concrete or clay tiles, more durable than asphalt shingles, and easier to handle than long-span corrugated sheets. It stands as the most reliable and cost-effective roofing system available on the market, offering a diverse array of designs and styles to choose from. Modern metal roofing can now convincingly mimic the appearance of other materials—such as wood shakes, asphalt shingles, and slate tiles—though, admittedly, a minor drawback is that they may lack the distinct textural depth and aesthetic nuance inherent in genuine wood or stone tiles.
The Glazed Tile Roll Forming Machine is equipped with advanced components—including a hydraulic cutting system, a programmable control system, an automatic uncoiler, and an automatic stacker—to ensure stable machine performance while significantly reducing manual labor and production time. As such, these machines are indispensable for manufacturers seeking to meet the growing market demand for reliable and aesthetically pleasing roofing materials. Yituo boasts a professional design team ready to provide you with complete Glazed Tile Roll Forming Machine production lines and comprehensive, one-stop solutions. Our Glazed Tile Roll Forming Machines have been successfully exported to numerous countries—including Saudi Arabia, the United States, Kazakhstan, and Nigeria—consistently receiving highly positive feedback from our clients.
Machine Single-Take Video
828 Glazed Tile Roll Forming Machine Features
828 Glazed Tile Roll Forming Machine Features

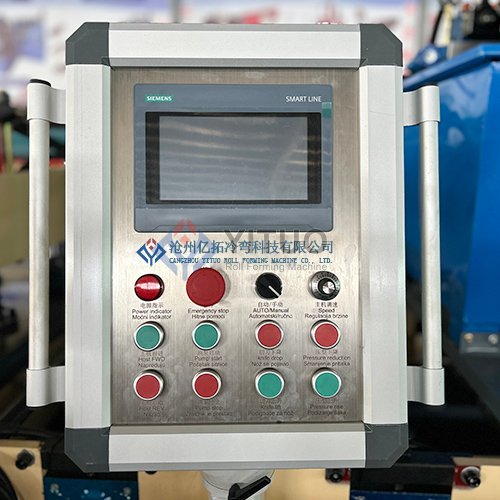

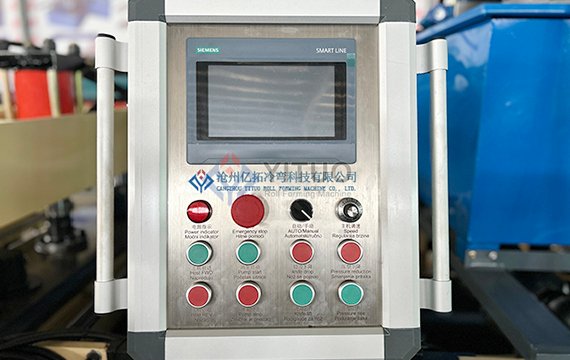

Siemens PLC
Equipped with a Siemens PLC control system to achieve intelligent, automated control and precise production management.

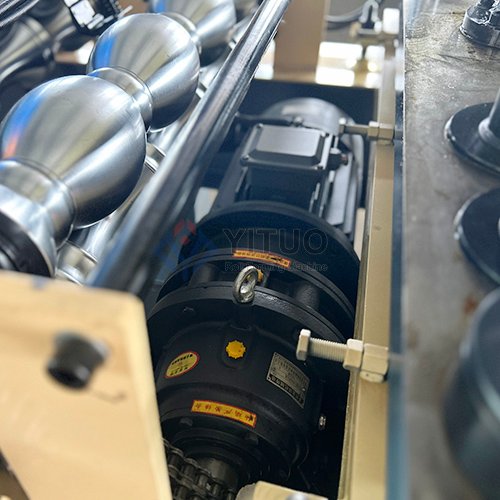

Servo Motor
Delivers extremely precise feeding lengths and stable operation, enhancing the consistency of each roofing panel.

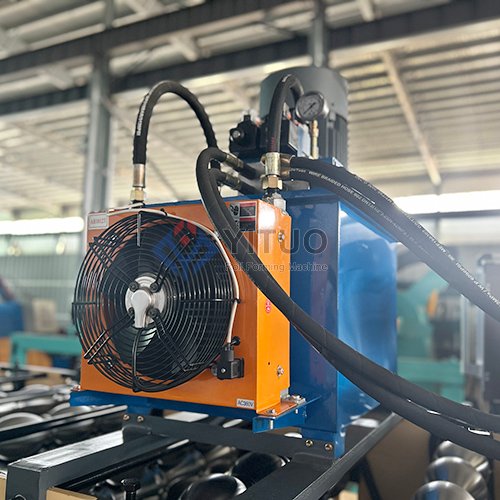

7.5 kW Pump Station
The machine adopts a 7.5KW hydraulic power station, providing powerful and stable hydraulic pressure for pressing and cutting.

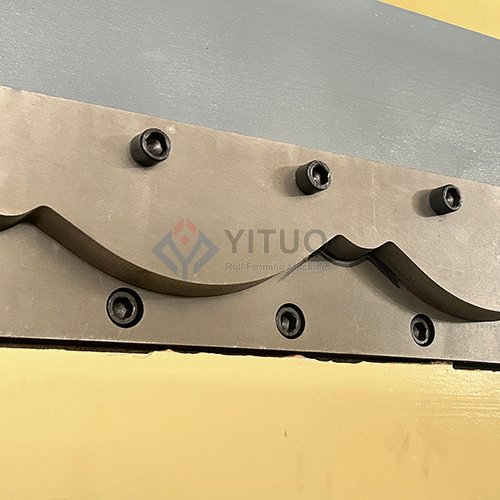

Cr12MoV Cutting Blade
The hydraulic cutting blade is made of thickened Cr12MoV, a material characterized by high wear resistance and strong toughness.

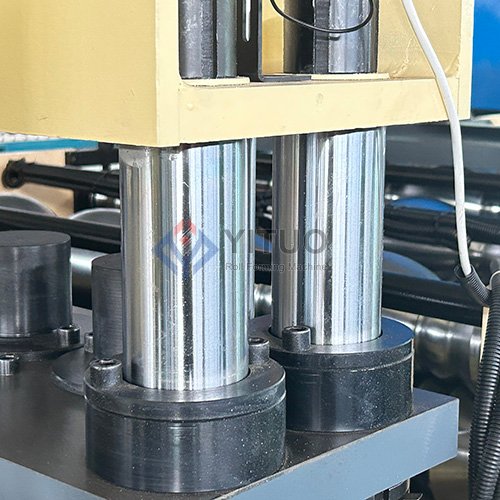

Dual Guide Post Hydraulic
The double guide pillar hydraulic system operates smoothly and precisely, offering enhanced stability during continuous production.

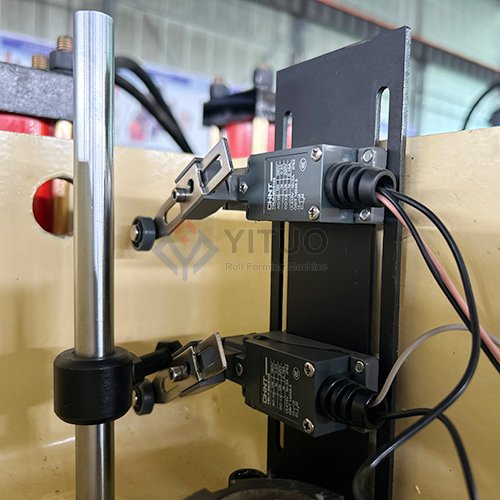

High-Precision Limit Switch
High-precision limit switches precisely control the position of hydraulic pressing and cutting, enhancing operational reliability.

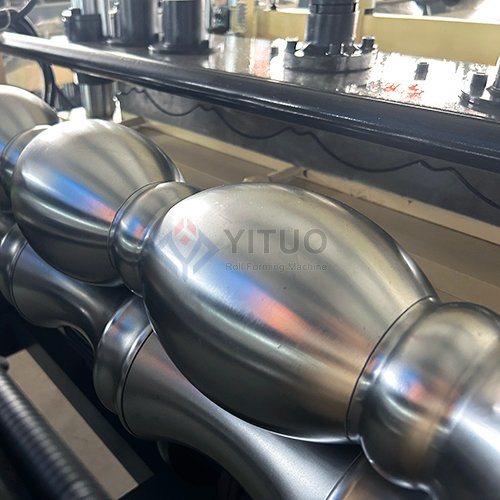

Cr12 Hardened Rollers
Each row of rollers is formed as a single unit and hardened; this ensures a longer service life and allows the forming precision to be maintained even after years of operation.

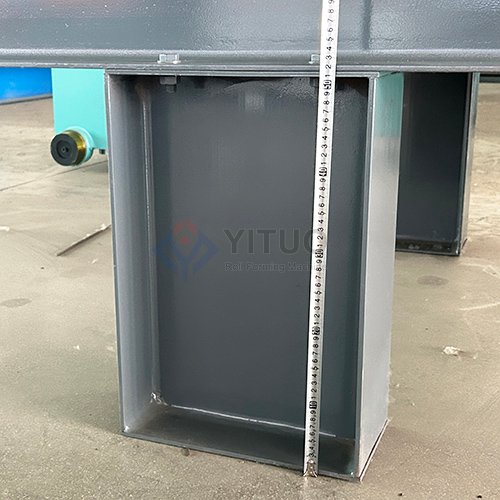

Raised Large Rack
The machine and the palletizer form a production line; with an elevated frame, the palletizer can store a larger quantity of metal tiles, facilitating the packaging process.

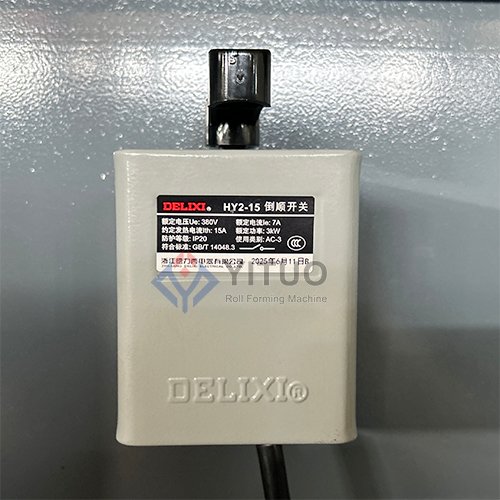

DELIXI Manual Switch
The machine is equipped with a DELIXI manual forward/reverse control switch, allowing operators to conveniently adjust machine movement during setup and maintenance.
828 Glazed Tile Roll Forming Machine Working Process

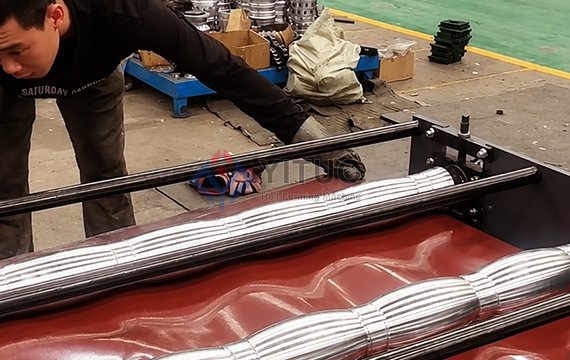

Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.The feed width is adjustable and features a manual cutting blade.

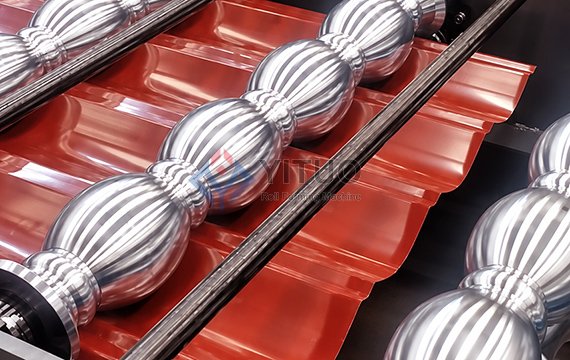

Cr12 One-piece molded roller
Cr12 possesses exceptional wear resistance and compressive strength; upon quenching,, enabling it to maintain its roller profile without wear and preserve precise tile geometry over extended periods.

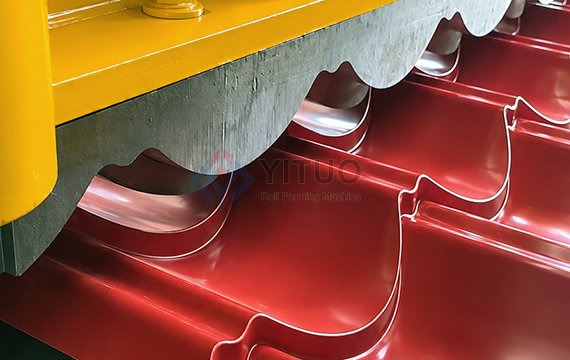

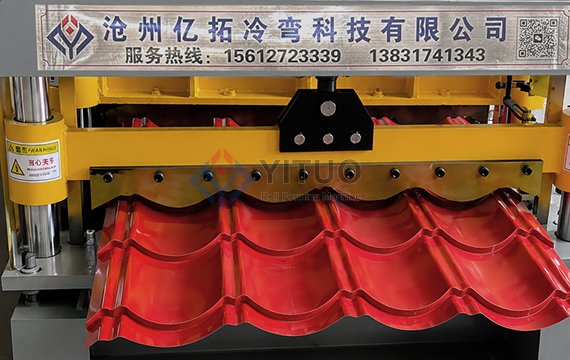

Hydraulic Molding
A dual-guide-post hydraulic press performs downward pressing to form the product, resulting in an appearance resembling traditional glazed tiles.
Cr12MoV Shear Blade
After undergoing quenching and low-temperature tempering, Cr12MoV shear blades achieve a hardness of HRC 58–62. The cutting edges are sharp and wear-resistant, highly resistant to compressive forces without easily collapsing, and produce clean, flat cuts.
Glazed Tile Roll Forming Machine Key Attributes
Material | Type | GI, PPGI |
Thickness(mm) | 0.4-0.6 | |
Yield Strength(Mpa) | 230-350 | |
Working Speed(m/min) | 4-6m/min | |
Step Distance | Adjustable according to request (>=250mm) | |
Roller Station | 9-11 Row | |
Roller Material | Cr12 One-piece molded roller | |
Roller Driven Type | Chain transmission/Gearbox | |
Cutting | Cr12MoV Shear Blade | |
| Hydraulic | Cr12MoV | |
Control System | Siemens PLC+Touch screen and button | |
Main Machine Power(KW) | 5.5 | |
Hydraulic station Power(KW) | 7.5 | |
Machine Weight(Kg) | 4000kg | |
Machine size(m) | 7×1.5×1.6 Depend on final design | |
828 Glazed Tile Roll Forming Machine Advantage
●The machine integrates feeding, roll forming, hydraulic pressing, cutting, and automatic output in one production line, greatly improving manufacturing efficiency.
● The hydraulic pressing system creates clear and uniform tile steps, giving the finished panels the traditional appearance of ceramic roof tiles while maintaining the durability of steel.
● Equipped with a user-friendly PLC control system and touch screen, operators can easily set production parameters and monitor machine performance.
● The machine frame is manufactured from high-strength steel and processed by precision welding to ensure long-term stability and reliability.
● We can design and manufacture different glazed tile profiles according to customer drawings, market requirements, and local building standards.

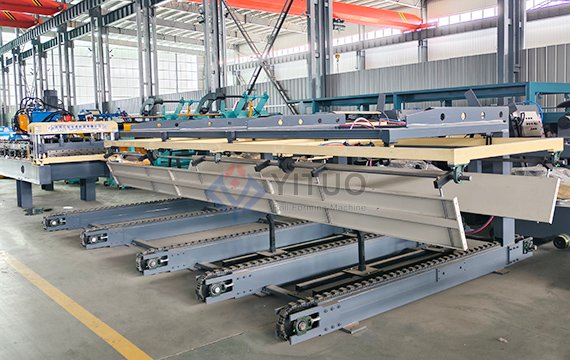

The palletizer and the glazed tile machine form a production line.
● Fully Automatic Stacking：Automatically collects and stacks finished roofing sheets, reducing labor and improving production efficiency.
● Scratch-Free Handling：Smooth conveying and stable support protect roofing sheets from scratches and deformation.
● Heavy-Duty Structure：Strong steel frame and durable chain conveyor ensure stable operation and a long service life.
● Precise & Neat Stacking：Automatic positioning and lifting keep every sheet aligned for easier packaging and transportation.
● Higher Productivity：Continuous automatic operation minimizes downtime and increases overall production output.
Why Choose Our Machines?
●Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
●We offer flexible OEM/ODM customization services to meet your diverse requirements.
●Our machines have been exported to over 100 countries and regions worldwide.
●Backed by 21 years of extensive experience, we are capable of manufacturing mechanical equipment characterized by stable quality and reliable performance. Even under the most demanding operational conditions, our equipment consistently maintains its exceptional performance standards.
How do we ensure the quality of our machines?
● The electrical system utilizes components from Siemens and top-tier domestic brands meeting national standards, ensuring the equipment's stability and durability right from the source.
● A dedicated specialist is assigned to oversee and document every stage of the process—from individual operations to the finest assembly details—ensuring full traceability throughout the entire workflow.
● Equipped with a professional in-house testing team, we conduct comprehensive evaluations covering the machine's forming precision, operational speed, and safety protection systems.
● A complete operational trial is performed prior to shipment, ensuring the equipment is ready for immediate production upon receipt;we employ anti-collision and rust-proof packaging to guarantee safe transit during long-distance and overseas shipping.
Zimbabwe 828 Glazed Tile Roll Forming Machine Project Case
Our customer is a well-established roofing sheet manufacturer located in Harare, Zimbabwe. The company has over eight years of experience supplying metal roofing materials to residential housing projects, commercial buildings, schools, and government infrastructure developments across Zimbabwe and neighboring countries.As the local construction market continued to grow, customer demand shifted from traditional corrugated roofing sheets to more decorative glazed tile roofing sheets. Homeowners and property developers increasingly preferred roofing products that combine the elegant appearance of ceramic tiles with the durability and lightweight advantages of steel. To meet this growing market demand, the customer decided to invest in a new production line capable of manufacturing the popular 828 glazed tile profile.
Before placing the order, the customer shared several key requirements with our engineering team:

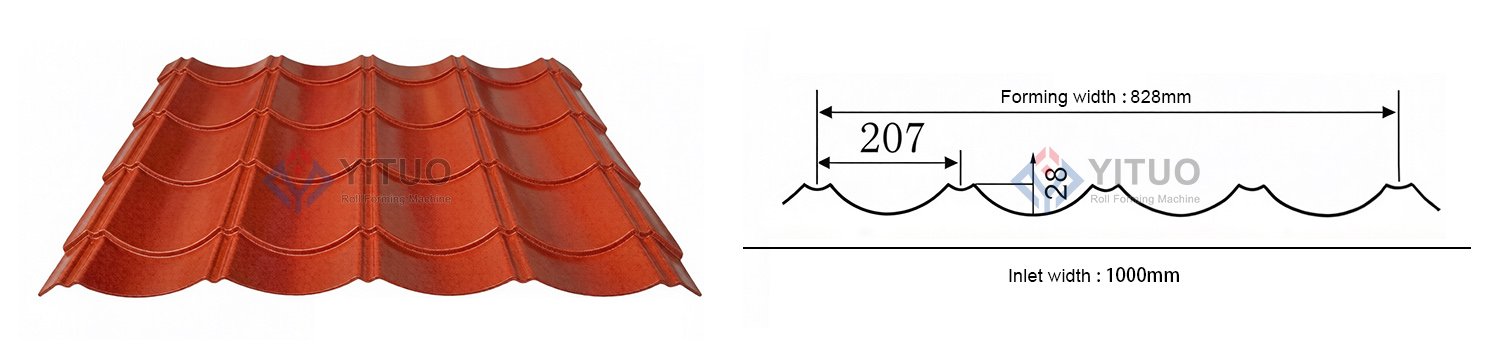

● Produce the 828 glazed tile profile using 1000 mm PPGI coils.
● Maintain stable production with high profile accuracy and excellent surface quality.
● Ensure easy operation with a fully automatic PLC control system.
● Reduce labor costs through a high level of automation.
● Use premium components with low maintenance requirements and a long service life.
● Provide reliable technical support for installation and future maintenance.
The customer has been using the equipment for five years and reports that it operates very smoothly, producing glazed-tile style roofing panels with an exquisite appearance and highly consistent quality. The PLC control system is easy to operate, and the finished products fully meet market demands. We are extremely satisfied with the quality of the equipment and the professional technical support provided throughout the project.
If you also need a similar solution,Our customer service team will recommend the panel profiles commonly used in your country or region. In addition to standard specifications, we also offer customization services tailored to your specific needs; please send us your drawings or let us know your detailed requirements.
